So the standby switch in my old Fender Twin Reverb broke right off - I bought a replacement, but it has six lugs. The original only has two. How the hell do I wire in the six-lug version?
Thanks!
Amp Standby Switch Wiring Question - PLEASE HALP
Moderator: Ghost Hip
Forum rules
The DIY forum is for personal projects (things that are not for sale, not in production), info sharing, peer to peer assistance. No backdoor spamming (DIY posts that are actually advertisements for your business). No clones of in-production pedals. If you have concerns or questions, feel free to PM admin. Thanks so much!
The DIY forum is for personal projects (things that are not for sale, not in production), info sharing, peer to peer assistance. No backdoor spamming (DIY posts that are actually advertisements for your business). No clones of in-production pedals. If you have concerns or questions, feel free to PM admin. Thanks so much!
- StopReferencing
- FAMOUS

- Posts: 1165
- Joined: Fri Jul 09, 2010 6:41 pm
- Location: The South of the North
- culturejam
- Supporter

- Posts: 2381
- Joined: Sun Jun 28, 2009 5:25 pm
- Location: Nueva Yersey
Re: Amp Standby Switch Wiring Question - PLEASE HALP
The original was SPST (single pole, single throw), but what you have now is DPDT (double pole, double throw).
So, what you want to do is use only two lugs. You want to use any two lugs that are vertically adjacent to each other.

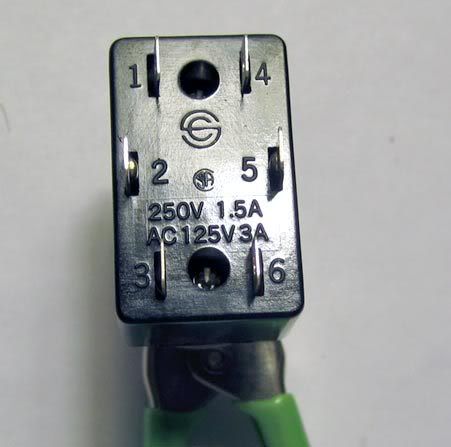

I just snapped a pic of a DPDT amp-sized switch I have on hand (although the voltage rating on this one isn't up to par for standby). So take a look below. You want to wire up using any of the following pairs of lugs:
1 and 2
2 and 3
4 and 5
5 and 6

So, what you want to do is use only two lugs. You want to use any two lugs that are vertically adjacent to each other.
I just snapped a pic of a DPDT amp-sized switch I have on hand (although the voltage rating on this one isn't up to par for standby). So take a look below. You want to wire up using any of the following pairs of lugs:
1 and 2
2 and 3
4 and 5
5 and 6

Disclaimer #1: Co-Founder, Product Developer at Function f(x).
- StopReferencing
- FAMOUS

- Posts: 1165
- Joined: Fri Jul 09, 2010 6:41 pm
- Location: The South of the North
Re: Amp Standby Switch Wiring Question - PLEASE HALP
Thanks for the helpful advice! I'mma try that at the practice space next time I'm there.
