Another new one. The Eroder.

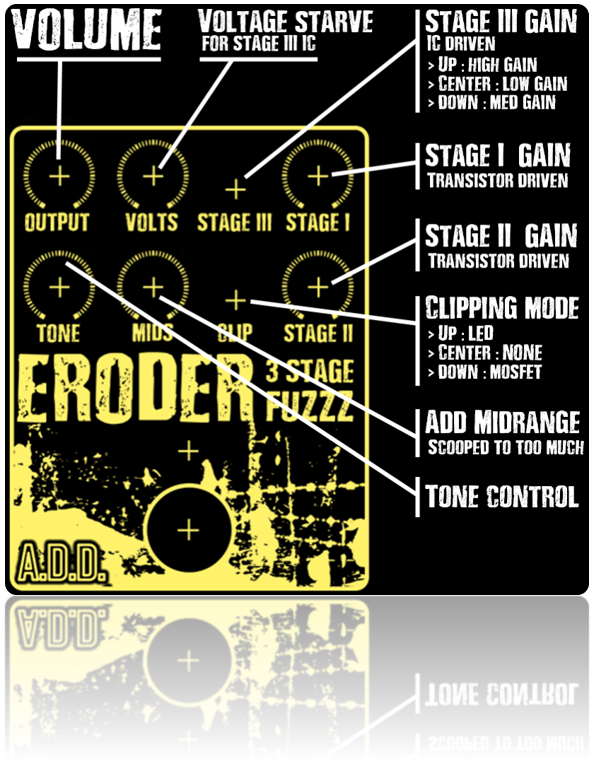

The Eroder is a three-stage dirt pedal. The controls can take it from an overdrive to a filthy fuzz with huge output. In this circuit, Stage I and II control transistor phases that push Stage III, an IC circuit with three gain levels. Mosfet or LED clipping can be added to flavor, and a volts control can starve the IC stage to further dirty things up. All this goes into a big muff style tone stack with an added midrange control.

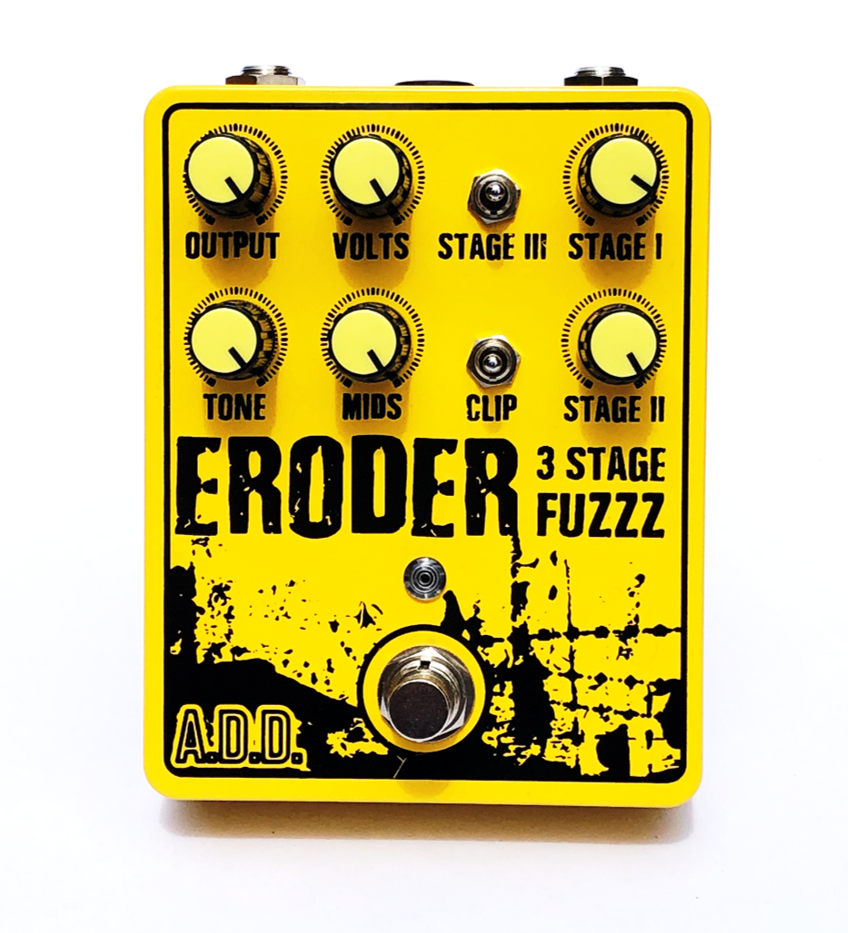

I will have 8 ready to go out by the end of the week. They will be $200. I have this yellow and black, OR I have a couple enclosures that are black on black.
