Sterling/Musicman project

[MrNovember]

Starting a project on a Sterling/Musicman guitar I just got in a trade.

Unfortunately, the guy was a heavy, cheap cigarette smoker so it stinks. Like literally. I managed to get the smell out of the body with little effort (just soapy water), but the neck has been an issue. It's currently wrapped in a garbage bag full of baking soda. Honestly, if I can't get it out of the neck I'm going to just abandon the whole thing.

The guy also apparently lived in the rain forest or left the guitar out in the rain or something because there wasn't a single unrusted part on it. So they're all soaking in some vinegar right now in the hopes that I can remove it. I'm pretty sure I'll at least need end up replacing all the pickguard screws and the saddles. The rest should be salvageable.

Anyways, that brings me to the electronics, which are a mess. Definitely needs a new 5-way switch and thinking of installing some concentric pots. As for pickups I was kind of thinking Alumitones, but I'm not totally sold yet.

What would you guys do? Any less expensive pickup recommendations?

[odontophobia]

GFS has some great pickups at really good prices.
I have some fender Atomic HBs that I'd sell. Pair for $25 plus shipping if you want.

But otherwise GFS rules. The Mean 90 humbucker sized is rad.

[MrNovember]

Thanks, I'll look into those and might take you up on that if I can get the stink out. If I can't I'm just going to keep it as stock as possible to flip ASAP.

[MrNovember]

Been checking out GFS and really liking their prices and all the different pickups available. I'm starting to think I'll go with the following:

Neck - mean 90:
http://www.guitarfetish.com/KP--GFS-Mea ... 21841.html

Middle - strat sized gold-foil:
http://www.guitarfetish.com/KP--GFS-Gol ... 22009.html

Bridge - Dream 180 humbucker:
http://www.guitarfetish.com/KP--Dream-1 ... 21773.html

I have no idea how I should wire it up though. I was thinking of using a set of concentric pots I have kicking around, but how would I wire that? Individual volumes and a master tone? Or maybe a common volume/tone for the single coils and a volume/tone for the hunmbucker?

[fcknoise]

Strat sized gold foil for the middle sounds like a super cool idea. I've heard good things about fender atomic hums previously too though

[MrNovember]

Strat sized gold foil for the middle sounds like a super cool idea. I've heard good things about fender atomic hums previously too though

Yeah I've read a few reviews of the Atomic humbuckers. Most were fairly positive. Being realistic with my budget though, odontophobia, expect a PM

I think the atomic humbuckers and the goldfoil combo will be awesome. I'm also thinking individual volumes and a master tone because I generally set the tone and forget it.

[kosta]

Some wiring ideas: A 5-way super switch would give you the ability to do some crazier series/parallel/phase reverse combos. I've also seen dudes leave the middle pickup out of the switch entirely and have it on a blend pot instead, so that they can blend it in and out of any setting on the switch.

http://www.stewmac.com/Pickups_and_Elec ... witch.html

http://www.stewmac.com/Pickups_and_Elec ... d_Pot.html

[MrNovember]

I've also seen dudes leave the middle pickup out of the switch entirely and have it on a blend pot instead, so that they can blend it in and out of any setting on the switch.

http://www.stewmac.com/Pickups_and_Elec ... d_Pot.html

I actually really like this idea, but I don't really understand the no load pot. Couldn't I achieve the same thing by wiring a standard pot as a volume directly to the output?

I already have a standard 5-way switch on the way. So if I leave the middle pickup out of the switch and blend it in, then I'd probably wire it neck humbucker/neck humbucker split/both humbuckers/bridge humbucker split/bridge humbucker. I also have a couple SPDT switches that I might wire in to achieve some series/parallel/phase combos

[kosta]

I actually really like this idea, but I don't really understand the no load pot. Couldn't I achieve the same thing by wiring a standard pot as a volume directly to the output?

To tell you the truth, I'm still building my understanding of how all of this stuff works, so I couldn't really tell ya. I'd probably just sit at my desk with a million alligator clipped lead wires until I got it to work. Hahahaha. Those no-load pots may or may not be the right tool for the job.

[fcknoise]

I think its basically having a pickup directly to a volume pot yes, no complex wiring is necessary really The thing is that usually lower on the volume knob=less treble. I know kind of little about this stuff, but a cap should fix that, right?

[MrNovember]

I think its basically having a pickup directly to a volume pot yes, no complex wiring is necessary really The thing is that usually lower on the volume knob=less treble. I know kind of little about this stuff, but a cap should fix that, right?

Honestly no clue, but I'll test some things out.

Had some stuff show up this morning:

What's the best way to cut a pickguard?

[odontophobia]

dremel? carefully...

looking to cut that spot on the bottom of the bridge?

[MrNovember]

I impulse bought a blank pickguard (black sheet top left of picture)

[MrNovember]

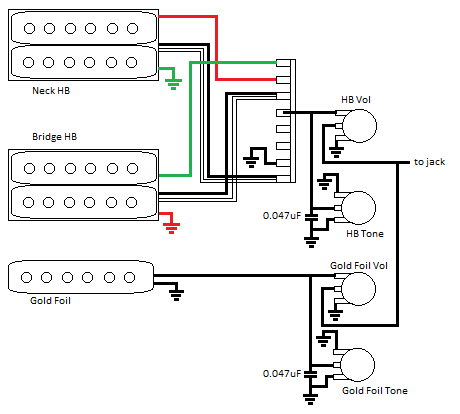

Alright, I've finally had some time to sit down and figure out the wiring. I think this is what I'm going to go with (based off this https://docs.google.com/gview?embedded= ... _1V_1T.pdf):

Wiring Diagram.png (11.16 KiB) Viewed 10314 times

Which I believe should give me:
Position 1: Bridge HB
Position 2: Bridge + Neck HB
Position 3: Neck HB
Position 4: Bridge + Neck tapped
Position 5: Bridge tapped

Plus I'd be able to blend the gold foil into any of those settings or would be able to get the gold foil alone by turning the HB volume down.

Does that make sense? I just want to make sure I have everything straight before I start soldering.


Also, looks pretty sweet with the hardware installed:

[DRodriguez]

That is hot as hell.
