dual effect order switching

Post by CyaNitrate »

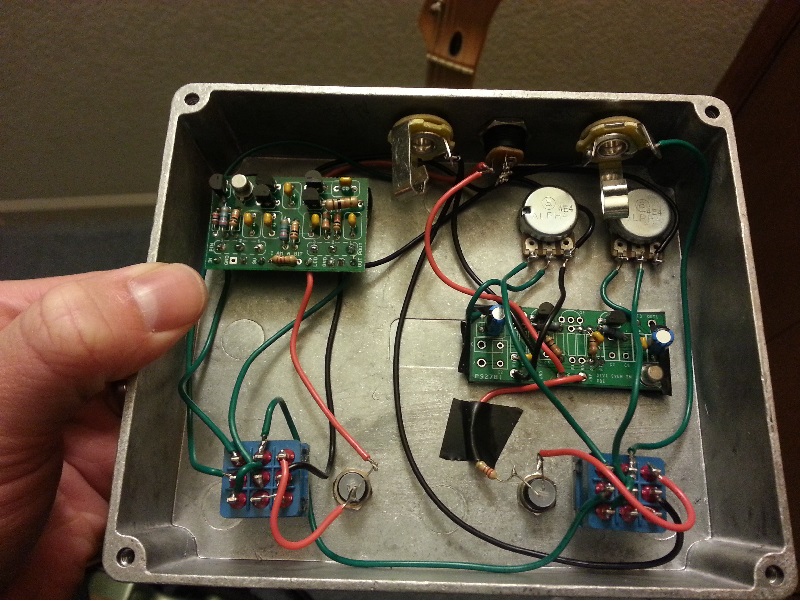

So I just put a Devi Hyperion and Bit in the same box, with the bit first in the chain. originally I didn't want to have an order switch, but now I kinda do. Will this layout work with a 3pdt toggle if I ignore the LED business and substitute the send and returns for the in and out on each of the fuzz's stomps? Not to the board, but where each stomp connects to the jacks and each other.
Attachments
jwar wrote:BRO! There is only one order! Bass>fuzz>fuzz>fuzz>fuzz>overdriven amp. :)
goroth wrote:Come up here and fuzz party. Yes. Fuzz party. It is a legit verb.
Top
User avatar
CyaNitrate
experienced
experienced
Posts: 882
Joined: Wed Jun 26, 2013 11:24 pm
Location: The Desert

Re: dual effect order switching

Post by CyaNitrate »

Signal comes in left middle and out top center on each footswitch...these (I think) are what would go to the order toggle...
jwar wrote:BRO! There is only one order! Bass>fuzz>fuzz>fuzz>fuzz>overdriven amp. :)
goroth wrote:Come up here and fuzz party. Yes. Fuzz party. It is a legit verb.
Top
User avatar
Nocentelli
involved
involved
Posts: 74
Joined: Wed Aug 26, 2009 3:43 pm

Re: dual effect order switching

Post by Nocentelli »

Yep, that will work.
Top
User avatar
CyaNitrate
experienced
experienced
Posts: 882
Joined: Wed Jun 26, 2013 11:24 pm
Location: The Desert

Re: dual effect order switching

Post by CyaNitrate »

Excellent. I thought it would but wanted a second opinion. Annnndd...ordered.
jwar wrote:BRO! There is only one order! Bass>fuzz>fuzz>fuzz>fuzz>overdriven amp. :)
goroth wrote:Come up here and fuzz party. Yes. Fuzz party. It is a legit verb.
