Small Clone mods trouble (wiring)

[zRobertez]

Okay, I had a different question in this thread before about my sc but I have another problem. As I was taking all the guts out of the case, all the wires just started breaking (as the rest of the internet warned me of). I replaced them how I thought I remembered where they came from but I think I messed the ones around that cap up and now when the pedal is engaged, I get a short, quiet siren sound and then nothing, no lit LED either.

If anyone has any pics of a similar cb's wiring or just knows how to do it, I would be eternally grateful I couldn't find any images that could help me

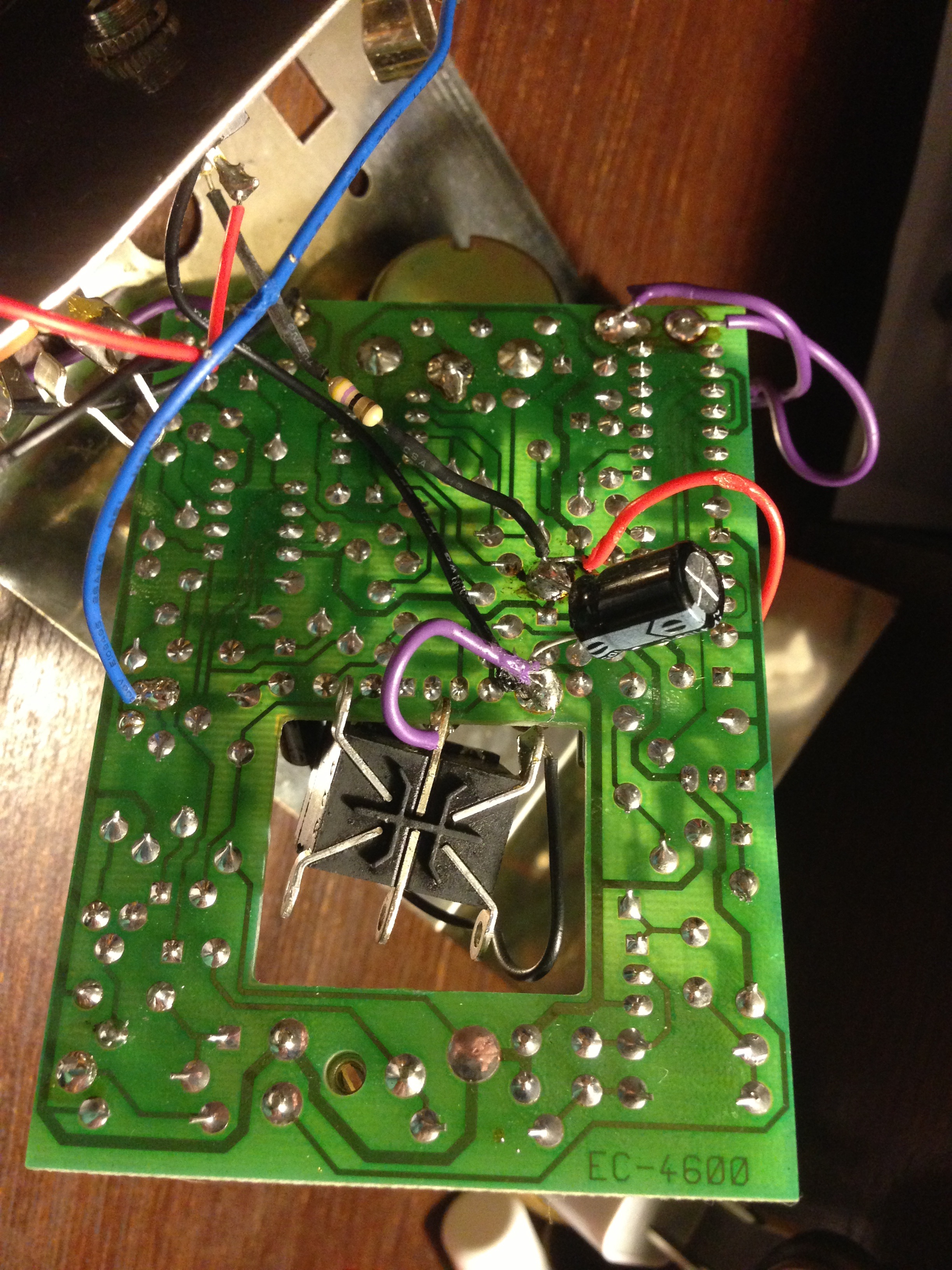

Her's myn

The red wire goes to the LED.
The top black wire to the DC jack with a resistor in between.
The bottom black wire to another spot on the DC jack.
The purple wire from the funky looking footswitch.
The black (bottomest) wire on the footswitch goes to the LED.

All the black wires are ones that did not break and I'm fairly certain they're in the correct spot

thanks, dodes!

[sonidero]

Yes and if you have a One Spot they come with adapters yo...



/thread...

[zRobertez]

Yes and if you have a One Spot they come with adapters yo...



/thread...

Oh snap! Link? Or what do I type in to find one? I have no idea what this new (old) power hole is lol

[sonidero]

Dude buy a One Spot... Even guitar center has them, or just search engine it...

Tom recommends em too...

[zRobertez]

No, I have a one spot. But I don't have that little adapter piece. Or I did and lost it in the Great War.

[zRobertez]

The war for TOAN, that is

[sonidero]

You can get the single ones... I can get them here... I will ship you one for a fee...

[zRobertez]

http://m.guitarcenter.com/Item/Default. ... 4561&urx=1
Found one!

[zRobertez]

Thanks maing!!!

[sonidero]

But I can ship one for $22.99... It'll bring out the Upper Lows which no one seems to care about anymore...

[zRobertez]

Im just really interested in a transparent chorus

[culturejam]

You could also drill out the hole a little bit so it works with the typical DIY panel-mount 9v jacks. I did that with a couple Russian Muffs I had.

Or the new smaller 9v jack from Bitches Love My Switches might even work as a direct replacement (no drilling):
http://bitcheslovemyswitches.com/#!/~/p ... d=18921807

[zRobertez]

Well I ordered a jack about a week ago with some other parts for more mods to this. But I also went to a local music shop and found the piece sonidero brought up.

[DannDubbleEwe]

I think the holes there are a size or two too small (in comparison to the steps on the unibit) for that low profile 9v jack. BLMS FOR LIFE!

[zRobertez]

bump for a different question. Moar troubles. woe is me
