so i have a univox unidrive clone that has the silicon transistors and i wanted to make one with germanium transistors using 2N385 NPN CBS germanium transistors and i was curious to know if anyone thinks i would be able to just copy the clone circuit but use the germanium trans instead if this would work?
any help is good help I am open to ideas and any suggestions
univox unidrive clone
Moderator: Ghost Hip
Forum rules
The DIY forum is for personal projects (things that are not for sale, not in production), info sharing, peer to peer assistance. No backdoor spamming (DIY posts that are actually advertisements for your business). No clones of in-production pedals. If you have concerns or questions, feel free to PM admin. Thanks so much!
The DIY forum is for personal projects (things that are not for sale, not in production), info sharing, peer to peer assistance. No backdoor spamming (DIY posts that are actually advertisements for your business). No clones of in-production pedals. If you have concerns or questions, feel free to PM admin. Thanks so much!
-
tacklebox455
- uncommitted
- Posts: 4
- Joined: Mon Jan 23, 2012 2:06 am
- Location: limestone county,AL
univox unidrive clone
High gain is my life
-
Jero
- IAMILFFAMOUS
- Posts: 11288
- Joined: Fri Mar 12, 2010 1:12 am
- Location: here
Re: univox unidrive clone
You might have to tweak a few values to get the germs working "right." At the very least, add a bias control/trim to the transistors. Probably be a good idea to breadboard it first.
I make noise toys under Stomping Stones
[url=http://www.stompingstones.com[/url]
[url=http://www.stompingstones.com[/url]
oldangelmidnight wrote:This is the classic ILF I love. Emotional highs and lows. Scooped mids in my heart all day long.
-
tacklebox455
- uncommitted
- Posts: 4
- Joined: Mon Jan 23, 2012 2:06 am
- Location: limestone county,AL
Re: univox unidrive clone
Yeah my plan was to bread board fi first and see how she sounds if this goes good I plan to build a germanium fuzz face as well
High gain is my life
-
squidly
- uncommitted
- Posts: 2
- Joined: Thu Apr 12, 2012 12:41 pm
Re: univox unidrive clone
Hi,
I've been attempting to build a unidrive clone. I have modded it with true bypass switching, led indicator, drive pot (to replace switch) and a tone control. I have drawn circuit diagrams and breadborded it, but it sounds awful. I even ordered some Matsushita 2sc859 from Small Bear, yet still no joy. I started with the original cuircit diagram from univox and went from there.
It's my first build, and I'm learning as I go. Any chance you could share your diagrams, stripboard layout etc?
I am happy share what I have come up with.
I've been attempting to build a unidrive clone. I have modded it with true bypass switching, led indicator, drive pot (to replace switch) and a tone control. I have drawn circuit diagrams and breadborded it, but it sounds awful. I even ordered some Matsushita 2sc859 from Small Bear, yet still no joy. I started with the original cuircit diagram from univox and went from there.
It's my first build, and I'm learning as I go. Any chance you could share your diagrams, stripboard layout etc?
I am happy share what I have come up with.
-
Jero
- IAMILFFAMOUS
- Posts: 11288
- Joined: Fri Mar 12, 2010 1:12 am
- Location: here
Re: univox unidrive clone
squidly wrote:Hi,
I've been attempting to build a unidrive clone. I have modded it with true bypass switching, led indicator, drive pot (to replace switch) and a tone control. I have drawn circuit diagrams and breadborded it, but it sounds awful. I even ordered some Matsushita 2sc859 from Small Bear, yet still no joy. I started with the original cuircit diagram from univox and went from there.
It's my first build, and I'm learning as I go. Any chance you could share your diagrams, stripboard layout etc?
I am happy share what I have come up with.
If you share what you've come up with, one of us might be able to spot a mistake, if any, and go from there
I make noise toys under Stomping Stones
[url=http://www.stompingstones.com[/url]
[url=http://www.stompingstones.com[/url]
oldangelmidnight wrote:This is the classic ILF I love. Emotional highs and lows. Scooped mids in my heart all day long.
-
squidly
- uncommitted
- Posts: 2
- Joined: Thu Apr 12, 2012 12:41 pm
Re: univox unidrive clone
Jero wrote:squidly wrote:Hi,
I've been attempting to build a unidrive clone. I have modded it with true bypass switching, led indicator, drive pot (to replace switch) and a tone control. I have drawn circuit diagrams and breadborded it, but it sounds awful. I even ordered some Matsushita 2sc859 from Small Bear, yet still no joy. I started with the original cuircit diagram from univox and went from there.
It's my first build, and I'm learning as I go. Any chance you could share your diagrams, stripboard layout etc?
I am happy share what I have come up with.
If you share what you've come up with, one of us might be able to spot a mistake, if any, and go from there

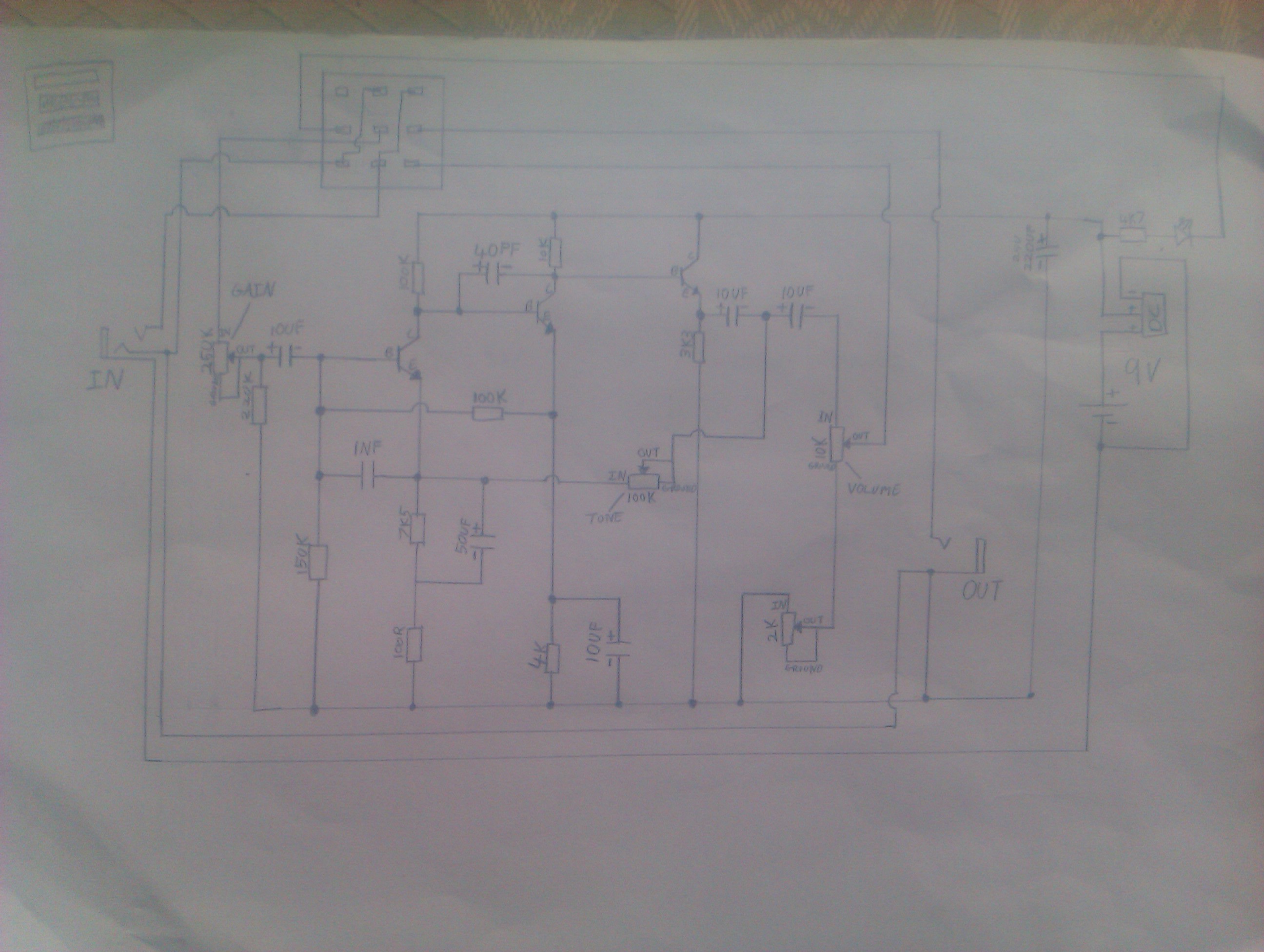

Ok, here's a photo of the circuit diagram I came up with, along with a link to the original univox diagram.
Any help will be greatly appreciated.
http://www.univox.org/pics/schematics/unidrive.gif
