Can you rehouse a Boss DM-2?

Post by SpaceFlunky »

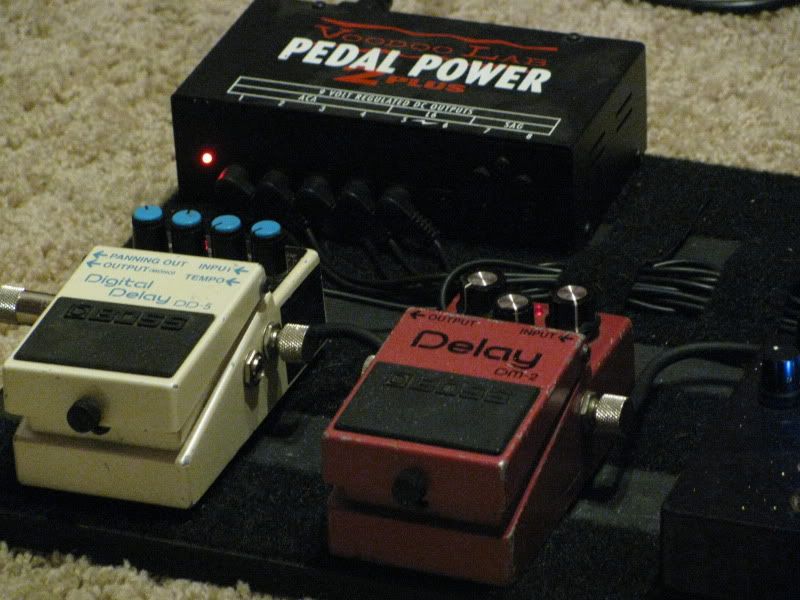

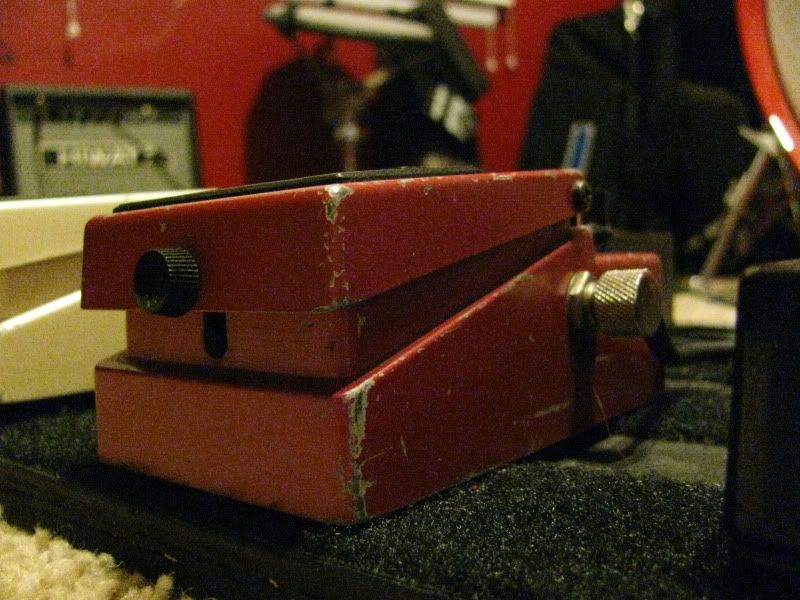

I have one and its old and looking rough. Can that pedal be rehoused? I would need to to be reversible if i ever decided to sell it.
Good Deals on ILF with: destroyerjazz - kosta - hbombgraphics - jskadiang - Chumley - adrianlee - Communarchy - ianmarks - GlitteryChunks - decomposing - Chankgeez

http://loshijosdeldiablo.bandcamp.com/
Top
User avatar
Jero
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 11288
Joined: Fri Mar 12, 2010 1:12 am
Location: here

Re: Can you rehouse a Boss DM-2?

Post by Jero »

Yea you can do it without hurting anything.
I make noise toys under Stomping Stones
[url=http://www.stompingstones.com[/url]
oldangelmidnight wrote:This is the classic ILF I love. Emotional highs and lows. Scooped mids in my heart all day long.
Top
User avatar
lizardville
committed
committed
Posts: 281
Joined: Sun Sep 06, 2009 4:56 am
Location: Dirty South- Spain-
Contact:
Contact lizardville

Re: Can you rehouse a Boss DM-2?

Post by lizardville »

There is nothing wrong with a relic-ed dm-2. here is mine..

Top
User avatar
eatyourguitar
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3127
Joined: Sun Oct 03, 2010 12:37 pm
Location: USA, RI

Re: Can you rehouse a Boss DM-2?

Post by eatyourguitar »

yeah I don't see why you need to rehouse it. does it have broken knobs, loose jacks and faulty footswitch? anything with MN3xxx is a keeper. don't buy gold, buy pedals with real BBD chips. behold the MN3205 :omg:
I hope they don't mind the deep linking from http://www.hobby-hour.com
WWW.EATYOURGUITAR.COM <---- MY DIY STUFF
Top
User avatar
SpaceFlunky
experienced
experienced
Posts: 763
Joined: Mon Jul 19, 2010 2:11 pm
Location: 405
Contact:
Contact SpaceFlunky

Re: Can you rehouse a Boss DM-2?

Post by SpaceFlunky »

Yea mine is the DM-2B
Marking of PCB: ET-5214-510B
BBD: MN3205
Clock Driver: MN3102

mines not too bad looking. I just think it needs a tuneup. The LED barely turns on and it just feels "weak" compared to any demo ive heard of it. Id be down to hunting down someone who could do a rehouse on it here in the near future.



Good Deals on ILF with: destroyerjazz - kosta - hbombgraphics - jskadiang - Chumley - adrianlee - Communarchy - ianmarks - GlitteryChunks - decomposing - Chankgeez

http://loshijosdeldiablo.bandcamp.com/
Top
User avatar
eatyourguitar
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3127
Joined: Sun Oct 03, 2010 12:37 pm
Location: USA, RI

Re: Can you rehouse a Boss DM-2?

Post by eatyourguitar »

You can swap 1 resistor to fix the led problem. There is one resitor for each opamp that controls the gain. Not sure i would mess with it though. Its just worth so much more money to leave it as is. You can rehouse to a DS1 box and redo the DM2 paint and screen print. You need to make screens and jigs. That is a serious project.
WWW.EATYOURGUITAR.COM <---- MY DIY STUFF
Top
User avatar
SpaceFlunky
experienced
experienced
Posts: 763
Joined: Mon Jul 19, 2010 2:11 pm
Location: 405
Contact:
Contact SpaceFlunky

Re: Can you rehouse a Boss DM-2?

Post by SpaceFlunky »

i might just see if i can send it to someone who can "tune" it. Ive read that over time they need that.
Good Deals on ILF with: destroyerjazz - kosta - hbombgraphics - jskadiang - Chumley - adrianlee - Communarchy - ianmarks - GlitteryChunks - decomposing - Chankgeez

http://loshijosdeldiablo.bandcamp.com/
Top
the_necropolitan
involved
involved
Posts: 84
Joined: Tue Jun 29, 2010 2:01 pm
Location: Milwaukee, WI
Contact:
Contact the_necropolitan

Re: Can you rehouse a Boss DM-2?

Post by the_necropolitan »

Did you flip the dip switch on your Pedal Power to compensate for the 12V versus 9V? Some old Boss pedals run with a different adapter (PSA or ACA, I always forget which one is which) and thus if you run the pedal at 9V, the LED looks weaker and the pedal sounds not as good. Let me know if you have questions about this...
Top
User avatar
devnulljp
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3989
Joined: Fri Oct 09, 2009 11:29 pm

Re: Can you rehouse a Boss DM-2?

Post by devnulljp »

the_necropolitan wrote:Did you flip the dip switch on your Pedal Power to compensate for the 12V versus 9V?
That's exactly what I was thinking.
DM-2 runs on 12V not 9V. Try it with a battery and see if it's any different. Or flip the switch on the PP2+.
Good deals done with all these guys
Canada, we put the "u" in satire
Top
User avatar
SpaceFlunky
experienced
experienced
Posts: 763
Joined: Mon Jul 19, 2010 2:11 pm
Location: 405
Contact:
Contact SpaceFlunky

Re: Can you rehouse a Boss DM-2?

Post by SpaceFlunky »

yea i flipped the switch on the PP2 and it did make a difference. The delay actually stands out more.
