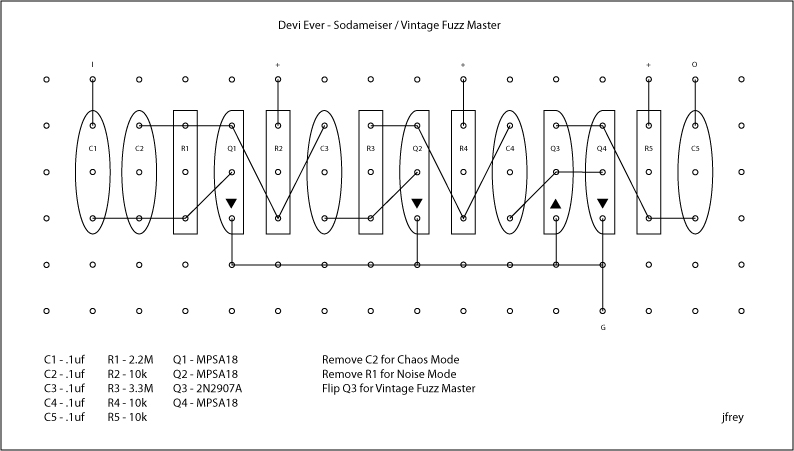

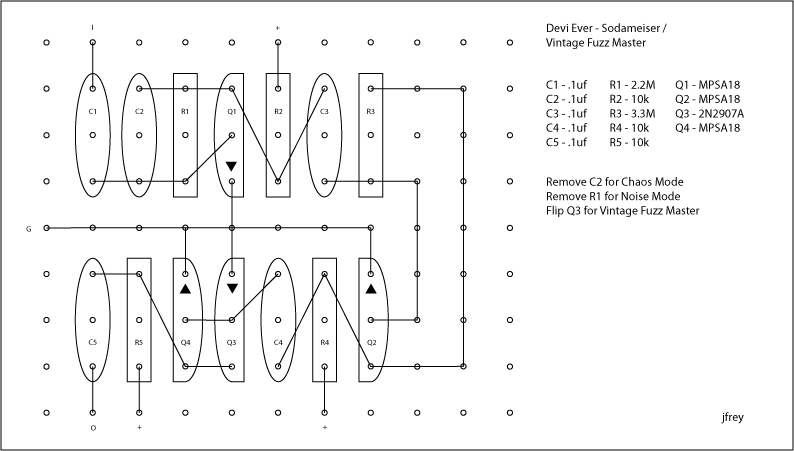

The images are a bit bigger, so open them up larger if you can't read them. Also, now that I think of it, transistors can take up two column spaces not one depending on the adjacent components - whatever, doesn't change the circuit. I guess later today maybe I'll redraw them for accuracy.
Last edited by jfrey on Thu Oct 06, 2011 3:36 pm, edited 1 time in total.
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
friendship wrote:one cool thing about living is that things get worse and worse and worse until you die
Yeah, the stuff left out I meant to leave out. I just drew up the board.
I was pretty sure it was right, I just wanted to double check. I have this issue - same thing happens when I'm programming - where I'll do the work, everything is perfect and I'm confident in it 100%. Then I look at it the next day and I don't even understand how it works. I might as well have created it in a dream because it doesn't make sense to me anymore.
