Crazy DS-1 Mods?

Post by wsas3 »

As do many guitar players, I have a spare ds-1 laying around the house, and I was wondering what crazy mods there are for it. I'm not talkingh about a keeley mod or anything, because im covered for dirt, im just wondering if i can do anything useful with it.
Chankgeez wrote:True, but you can also use the Klon as a tremolo. Just stomp on the switch as fast or slow as you'd like.
Good dealings with: benjuro, hatshirt(2), Eric!, insubordination, theavondon, skullservant, Ilikewater, GardenoftheDead, AndyTran, behndy, JerryTRCD, StopReferencing, philibis, jfrey, bob the robot, Noise..., space60y(x2), jskadiang, Ryan(2), Helter, mordecainyc, many more
Top
User avatar
Schlatte
IAMILF
IAMILF
Posts: 2667
Joined: Mon Aug 08, 2011 3:27 pm
Location: Austria

Re: Crazy DS-1 Mods?

Post by Schlatte »

I don't know what you mean by "crazy" but I recently stumbled across this site http://www.erikhansen.net/pedalmods.php where you can find easy ways to get a better sound out of your ds-1...
Good Deals with: All these fine people!

MOM-D Shark Tank is back! Open Source Designs for musical pleasure! Back in the Tank! Go check it out!
Top
User avatar
wsas3
IAMILF
IAMILF
Posts: 2406
Joined: Wed Feb 02, 2011 8:24 pm
Location: NYC

Re: Crazy DS-1 Mods?

Post by wsas3 »

By crazy I mean something... well.... crazy. Not that I expect to do it with a ds-2 circuit, but modulation, random arpeggiating. That would be cool, but really, just something odd. What I don't want is soemthing to enhance trhe sound of the ds-1
Chankgeez wrote:True, but you can also use the Klon as a tremolo. Just stomp on the switch as fast or slow as you'd like.
Good dealings with: benjuro, hatshirt(2), Eric!, insubordination, theavondon, skullservant, Ilikewater, GardenoftheDead, AndyTran, behndy, JerryTRCD, StopReferencing, philibis, jfrey, bob the robot, Noise..., space60y(x2), jskadiang, Ryan(2), Helter, mordecainyc, many more
Top
User avatar
Schlatte
IAMILF
IAMILF
Posts: 2667
Joined: Mon Aug 08, 2011 3:27 pm
Location: Austria

Re: Crazy DS-1 Mods?

Post by Schlatte »

well... you could rehouse it and add a one octave down fuzz-feedback loop... I did this to a few pedals.. sounds pretty strange.. do you want teh schems?
Good Deals with: All these fine people!

MOM-D Shark Tank is back! Open Source Designs for musical pleasure! Back in the Tank! Go check it out!
Top
User avatar
multi_s
IAMILF
IAMILF
Posts: 2098
Joined: Mon Feb 15, 2010 9:00 pm

Re: Crazy DS-1 Mods?

Post by multi_s »

make a stapler out of it.
Top
User avatar
eatyourguitar
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3127
Joined: Sun Oct 03, 2010 12:37 pm
Location: USA, RI

Re: Crazy DS-1 Mods?

Post by eatyourguitar »

feedbacking it with any kind of filter will get you an oscillator with a pitch tunable by the tone knob or filter. just keep tweaking your filters till you get a drone box out of it. you wont get a resonant frequency as low as 60hz till you rework the internal filters in the DS1. clipping diodes on the feedback loop could be fun too.
WWW.EATYOURGUITAR.COM <---- MY DIY STUFF
Top
User avatar
wsas3
IAMILF
IAMILF
Posts: 2406
Joined: Wed Feb 02, 2011 8:24 pm
Location: NYC

Re: Crazy DS-1 Mods?

Post by wsas3 »

Schlatte wrote:well... you could rehouse it and add a one octave down fuzz-feedback loop... I did this to a few pedals.. sounds pretty strange.. do you want teh schems?

sure! :hug:
Chankgeez wrote:True, but you can also use the Klon as a tremolo. Just stomp on the switch as fast or slow as you'd like.
Good dealings with: benjuro, hatshirt(2), Eric!, insubordination, theavondon, skullservant, Ilikewater, GardenoftheDead, AndyTran, behndy, JerryTRCD, StopReferencing, philibis, jfrey, bob the robot, Noise..., space60y(x2), jskadiang, Ryan(2), Helter, mordecainyc, many more
Top
User avatar
Jero
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 11288
Joined: Fri Mar 12, 2010 1:12 am
Location: here

Re: Crazy DS-1 Mods?

Post by Jero »

I've done the common circuit bending mods to them before. Can get some really awesome sounds with them. http://www.instructables.com/id/Circuit ... S-1/#step1
I make noise toys under Stomping Stones
[url=http://www.stompingstones.com[/url]
oldangelmidnight wrote:This is the classic ILF I love. Emotional highs and lows. Scooped mids in my heart all day long.
Top
User avatar
nieh
IAMILF
IAMILF
Posts: 2689
Joined: Sun Nov 07, 2010 2:32 pm
Location: Wisconsin

Re: Crazy DS-1 Mods?

Post by nieh »

I wanna figure out how this guy did this.

[youtube]http://www.youtube.com/watch?v=OXd8-2vQmcY[/youtube]
Chankgeez wrote: (Don't worry, spouses come and go, ILF is forever.)
Top
User avatar
eatyourguitar
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3127
Joined: Sun Oct 03, 2010 12:37 pm
Location: USA, RI

Re: Crazy DS-1 Mods?

Post by eatyourguitar »

nieh wrote:I wanna figure out how this guy did this.

after reading his site, he builds lots of DS and tube screamer variants. the tube screamer can do that fuzz sound easy if you just remove some high pass filtering. probably something similar is possible with the DS-1. start modding and see what happens. go grab your tube screamer and put a huge cap in it like this.
see the dark green poly film.
WWW.EATYOURGUITAR.COM <---- MY DIY STUFF
Top
User avatar
Christopher
committed
committed
Posts: 436
Joined: Tue Apr 06, 2010 5:12 pm

Re: Crazy DS-1 Mods?

Post by Christopher »

WILL IT BLEND?
Top
User avatar
Schlatte
IAMILF
IAMILF
Posts: 2667
Joined: Mon Aug 08, 2011 3:27 pm
Location: Austria

Re: Crazy DS-1 Mods?

Post by Schlatte »

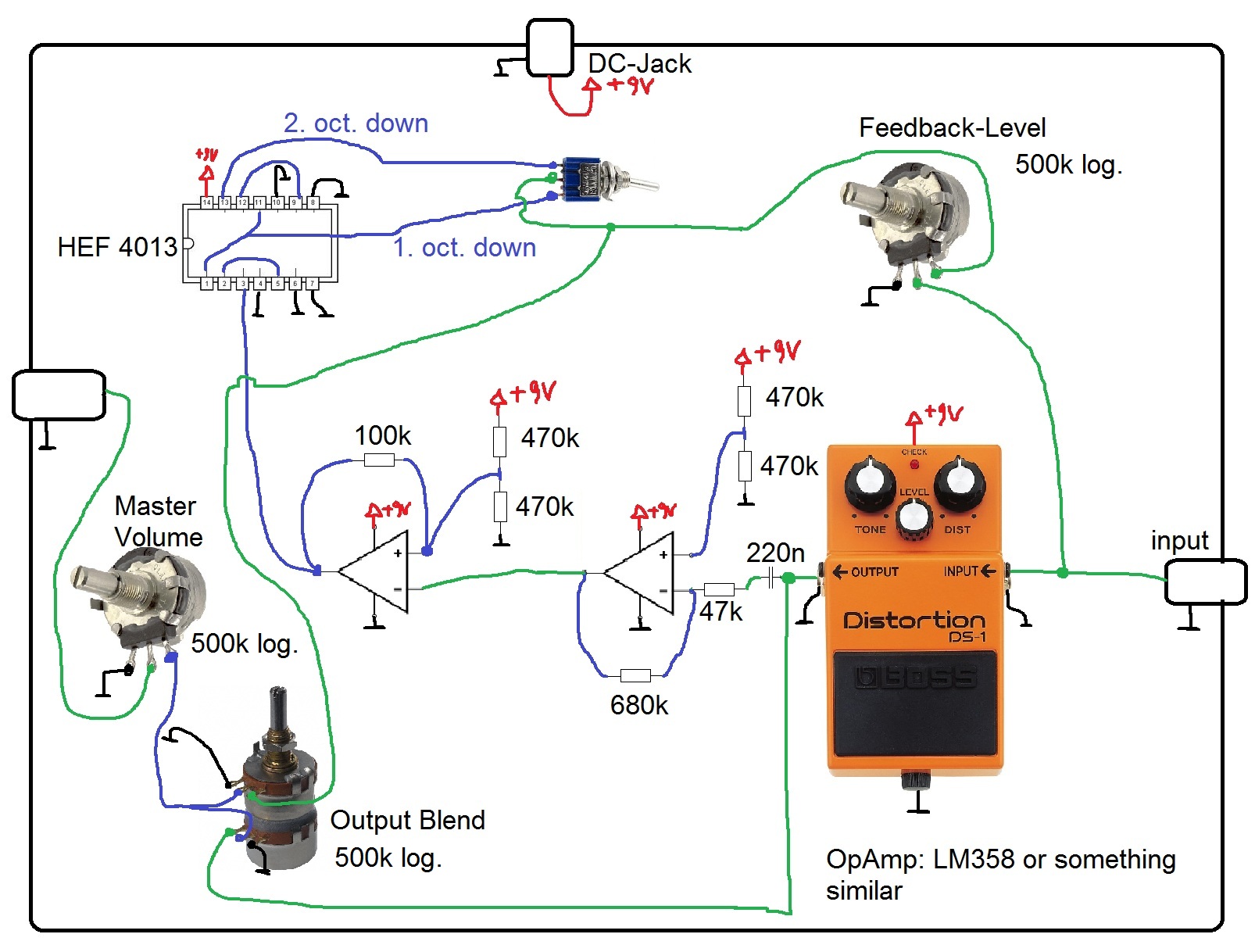

Here you go...
my idea... idk how it sounds but I imagine it being "crazy" !?

I don't know how the DS-1 fx/bypass switching works so I left the switch out of the plan.... you have to figure something out for the switching system... sorry :idk:
Attachments
Good Deals with: All these fine people!

MOM-D Shark Tank is back! Open Source Designs for musical pleasure! Back in the Tank! Go check it out!
Top
User avatar
Bellyheart
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 5791
Joined: Mon Nov 10, 2008 11:23 pm
Location: Richmond, Va

Re: Crazy DS-1 Mods?

Post by Bellyheart »

Casper Electronics has an easy and awesome mod on the site. I got the arpeggios and oscillations as well as subbass and 8-bits. One component, a switch, and wire is all ya need.
Top
User avatar
Jero
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 11288
Joined: Fri Mar 12, 2010 1:12 am
Location: here

Re: Crazy DS-1 Mods?

Post by Jero »

Bellyheart wrote:Casper Electronics has an easy and awesome mod on the site. I got the arpeggios and oscillations as well as subbass and 8-bits. One component, a switch, and wire is all ya need.

Is that the one where you add in a transistor?

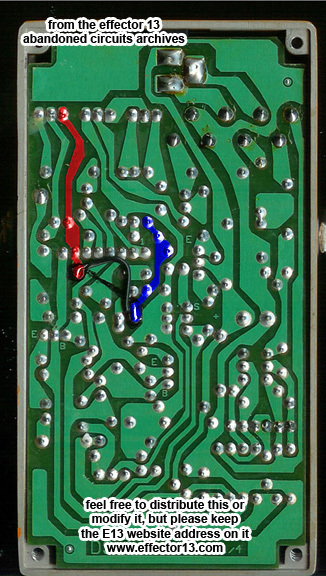

There's also the "tremolo" mod that's posted on devi's site.
I make noise toys under Stomping Stones
[url=http://www.stompingstones.com[/url]
oldangelmidnight wrote:This is the classic ILF I love. Emotional highs and lows. Scooped mids in my heart all day long.
Top
User avatar
Bellyheart
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 5791
Joined: Mon Nov 10, 2008 11:23 pm
Location: Richmond, Va

Re: Crazy DS-1 Mods?

Post by Bellyheart »

Yep...and somehow, I think due to terrible soldering and what not, mine would do that tremolo thing as well...but it would decide when it did it.
