How to understand resistors and whatnot?

[Officer Bukowski]

Hey guys! I just got a soldering iron yesterday and I'm working on my first build by myself. It's a "Super Ego" pcb from culturejam.

So I've got a mixed bag of components here and I'm not sure how to understand what goes where. Culturejam kindly sent me a layout and schematic. And the schematic says things like "R1 1K". So I know where R1 is supposed to go, but I'm not sure how to tell which resistor is 1k, etc.

Can someone help me out? I'm assuming the little stripes are some kind of code but I don't understand how to read it. Thanks!

[LaoWiz]

Resistors are color coded but that can be confusing and time consuming at first. I would suggest that you buy a digital multimeter. They can be had for as little as $20. The one I bought takes measurements for resistors, hfe readings for transistors, capacitor readings, voltage, etc. It was probably about 60 to 70 bucks.

These come with probes, one probe to one side of the resistor and the probe to the other side. Pretty easy and an important diy tool. If you buy kits, sometimes the resistors are marked with the value in individual bags. If they aren't you should get a multimeter. If you can't afford one at the moment, google resistor color codes and you can find a chart that will help you...

[MEC]

Hey guys! I just got a soldering iron yesterday and I'm working on my first build by myself. It's a "Super Ego" pcb from culturejam.

So I've got a mixed bag of components here and I'm not sure how to understand what goes where. Culturejam kindly sent me a layout and schematic. And the schematic says things like "R1 1K". So I know where R1 is supposed to go, but I'm not sure how to tell which resistor is 1k, etc.

Can someone help me out? I'm assuming the little stripes are some kind of code but I don't understand how to read it. Thanks!

Calculators:

http://samengstrom.com/24614782/en/read/4_Band_Resistor_Color_Codes
http://www.ealnet.com/m-eal/resistor/resistor.htm

Chart:

[culturejam]

If I'm at my bench building, I use the basic colors to get me in the ballpark and then a DMM to test and verify. That's if I'm pickup up a random part. I have all my shit sorted by values in bags, so usually that's not an issue.

[darthbatman]

pretty good acronyms for the color code
http://www.acronymfinder.com/BBROYGBVGW.html

[morange]

pretty good acronyms for the color code
http://www.acronymfinder.com/BBROYGBVGW.html

Bad Boys Rape Our Young Girls But Violet Gives Willingly

Oh that Violet.

[Officer Bukowski]

Thanks guys.

I'm kinda stumped by these last three. Also, does this look right so far culturejam? I think I may have put the ceramic disc cap in the wrong place.

[Officer Bukowski]

Also.. Sorry about the low quality pic. That's the best my iPhone can do. If you need me to tell you the color of the stripes on any of the resistors I can.

Also that's not my penis, my pants were just kinda bunched up for sitting down.

[Officer Bukowski]

I need help with C1, C7, R6, R8, & R10. And I'm not sure if that ceramic disc cap is wrong.

[MEC]

Sweet boner!
What are the resistor color bands on the ones you can't figure out and what are the values listed as for R6, R8 and R10?

[Officer Bukowski]

Yellow, purple, black, brown, gold

Gray, gray, black, green, gray? This ones really hard to tell

gray, gray(?), red, yellow, gold

R6 820K, R8 1K5? I don't even know what that means. I'm a real noob. R10 22K

I had two other 22K resisors but used them on the board. R10 kinda looks like a resistor for the LED so maybe the value doesn't matter that much? I really don't know what I'm talking about haha. Show me the way oh DIY masters.

[eatyourguitar]

pretty good acronyms for the color code
http://www.acronymfinder.com/BBROYGBVGW.html

Bad Boys Rape Our Young Girls But Violet Gives Willingly

Oh that Violet.

my dad said they teach this in the navy, seriously

[McSpunckle]

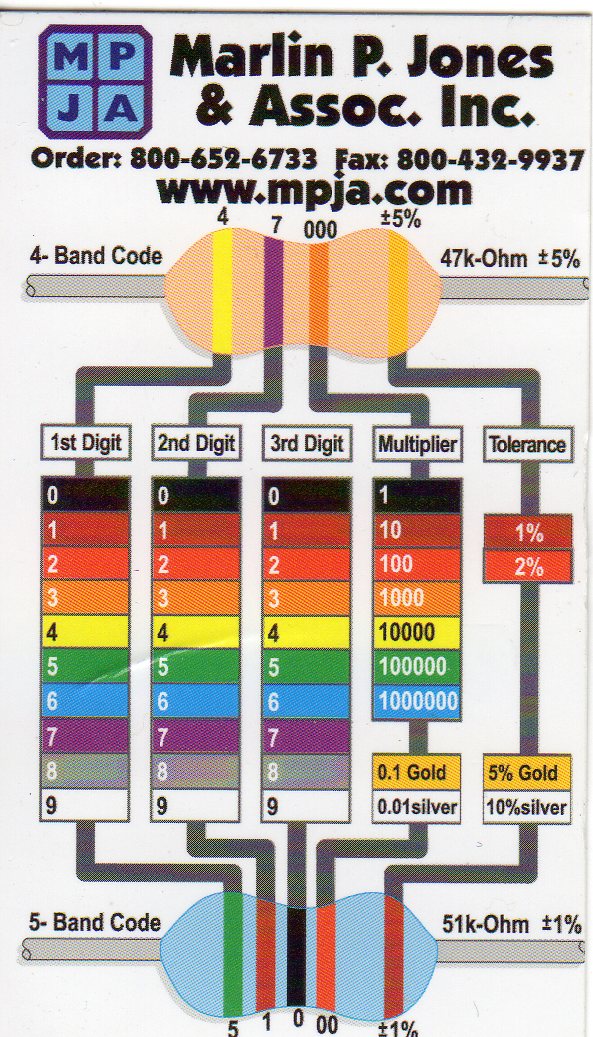

I ordered some switches from MPJA (Not highly recommended), and it came with this nifty business card thing:

I keep it handy, but honestly on these smaller resistors, I usually just measure them. If you have a kit with a bunch of loose resistors, it's not too bad to measure one, then find the ones that match it. But sitting there trying to read the colour codes kinda sucks and you'd really save time just measuring the resistors.

[MEC]

Yellow, purple, black, brown, gold = 4.7k

Gray, gray, black, green, gray = 88m

gray, gray, red, yellow, gold = 8.82m

These are the values for the colors you listed. They don't appear to match what you need.
If you have trouble reading/seeing the colors buy glasses/multimeter.
