Another noob question for the ILF diy wizards. I read that you can add caps together to replace higher value caps.

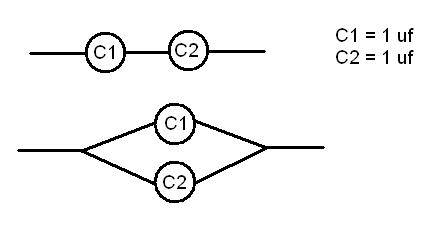

Say I wanted 2 uf for example, and I had (2) 1 uf caps. Which of these arrangements would equal 2 uf?
Say I wanted 2 uf for example, and I had (2) 1 uf caps. Which of these arrangements would equal 2 uf?
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
My music rec Twitter: https://twitter.com/MostlyEssentialfriendship wrote:one cool thing about living is that things get worse and worse and worse until you die
-
Scruffie
- Admin
- Posts: 4647
- Joined: Sun Jun 07, 2009 8:46 pm
- Location: London.. ish, Uk
Re: Caps clarification
The Bottom Picture.
Caps Add In Parallel, Resistors Divide.
Resistors Add in Series so that means Caps...
Caps Add In Parallel, Resistors Divide.
Resistors Add in Series so that means Caps...
-
jfrey
- Supporter
- Posts: 5240
- Joined: Wed Apr 14, 2010 10:58 am
- Location: Boston, MA
Re: Caps clarification
...Divide?
So the top picture would have what value? 1 uf? Would there ever be a point then to having caps in series?
So the top picture would have what value? 1 uf? Would there ever be a point then to having caps in series?
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
My music rec Twitter: https://twitter.com/MostlyEssentialfriendship wrote:one cool thing about living is that things get worse and worse and worse until you die
-
Scruffie
- Admin
- Posts: 4647
- Joined: Sun Jun 07, 2009 8:46 pm
- Location: London.. ish, Uk
Re: Caps clarification
Correct, well it's actually a little different that, it's to do with Conductances, you'd need to know ohms law, but that's it simplified, you can use this sum to find out the value of Parallel Resistors - R1*R2/(R1+R2).
Caps in Series share the same Sum - C1*C2/(C1+C2) so you'd actually have 500nF or thereabouts.
So yes if you need a value you don't have it can be useful or say you have a 3 way toggle, it's handy in that situation to know how to get the resistance/capactiance you need for each throw of the switch with different values.
Caps in Series share the same Sum - C1*C2/(C1+C2) so you'd actually have 500nF or thereabouts.
So yes if you need a value you don't have it can be useful or say you have a 3 way toggle, it's handy in that situation to know how to get the resistance/capactiance you need for each throw of the switch with different values.
-
jfrey
- Supporter
- Posts: 5240
- Joined: Wed Apr 14, 2010 10:58 am
- Location: Boston, MA
Re: Caps clarification
Ok, I get it now. Thanks!
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
My music rec Twitter: https://twitter.com/MostlyEssentialfriendship wrote:one cool thing about living is that things get worse and worse and worse until you die
-
randel_07
- committed
- Posts: 348
- Joined: Fri Aug 10, 2007 4:35 pm
- Location: East Bay Area, CA
Re: Caps clarification
or if you want
1/Ceq = 1/C1 + 1/C2 + ...... 1/Cn
1/Ceq = 1/C1 + 1/C2 + ...... 1/Cn
aen wrote:"We're going to DI the bass"
Oh, no you're not, christian acoustic soundguy.
