Heya folks,
I want to built a footswitchable voltage sag with an LED into a pedal. Would this layout work? The LED may be facing the wrong way, I'm not sure, but I'm more asking about the switch wiring. Thanks
Footswitchable Voltage Sag
Moderator: Ghost Hip
Forum rules
The DIY forum is for personal projects (things that are not for sale, not in production), info sharing, peer to peer assistance. No backdoor spamming (DIY posts that are actually advertisements for your business). No clones of in-production pedals. If you have concerns or questions, feel free to PM admin. Thanks so much!
The DIY forum is for personal projects (things that are not for sale, not in production), info sharing, peer to peer assistance. No backdoor spamming (DIY posts that are actually advertisements for your business). No clones of in-production pedals. If you have concerns or questions, feel free to PM admin. Thanks so much!
-
chutneyfarmer
- experienced
- Posts: 892
- Joined: Mon Jan 05, 2009 3:48 pm
- Location: Ireland

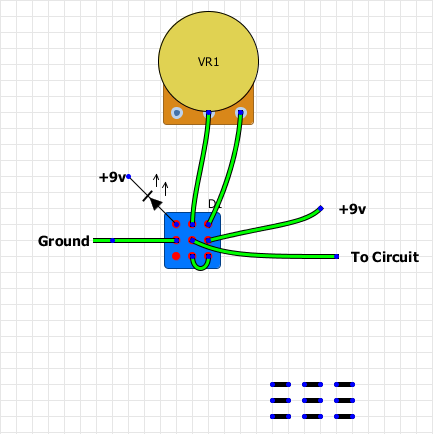

Footswitchable Voltage Sag
- Attachments
-
- Footswitchable Voltage Sag.png (21.77 KiB) Viewed 827 times
Good Transactions With:
Achtane
in2thegapagain85
Proroby
zezozeceglutz
MEC
echobaseone
Skullservant
Rob Fossil
Psyre
Achtane
in2thegapagain85
Proroby
zezozeceglutz
MEC
echobaseone
Skullservant
Rob Fossil
Psyre
-
Jack Deville
- committed
- Posts: 175
- Joined: Tue Jan 26, 2010 2:05 am
- Location: Portland, OR USA
- Contact:
Re: Footswitchable Voltage Sag
This may be relevant to your interest:
viewtopic.php?f=151&t=11349
some design considerations are in the thread as well.
viewtopic.php?f=151&t=11349
some design considerations are in the thread as well.
-
pothole
- committed
- Posts: 438
- Joined: Mon Dec 21, 2009 11:20 pm
- Location: Isengard
Re: Footswitchable Voltage Sag
I built one...but I used a little voltage regulator board I bought from ebay for a couple bucks. Works really well with some pedals..seems like the more primitive the circuit, the better it works.
-
McSpunckle
- IAMILFFAMOUS
- Posts: 3848
- Joined: Mon Oct 06, 2008 10:20 am
- Location: Nashville, TN
Re: Footswitchable Voltage Sag
Other than the backwards LED, you're good.
-
chutneyfarmer
- experienced
- Posts: 892
- Joined: Mon Jan 05, 2009 3:48 pm
- Location: Ireland
Re: Footswitchable Voltage Sag
McSpunckle wrote:Other than the backwards LED, you're good.
Cool, thanks. Finished building a Devi Ever Ruiner/Hyperion clone with the footswitchable voltage sag. Sounds nice! Haven't had much time to play with it today though
Looking forward to pairing it with my GZ/VFM clone
