Let's see your finished DIY projects!

[dminner]

Finally finished a pedal!

https://postimg.org/image/rmsw9shjt/

So awesome

[purpleshoes]

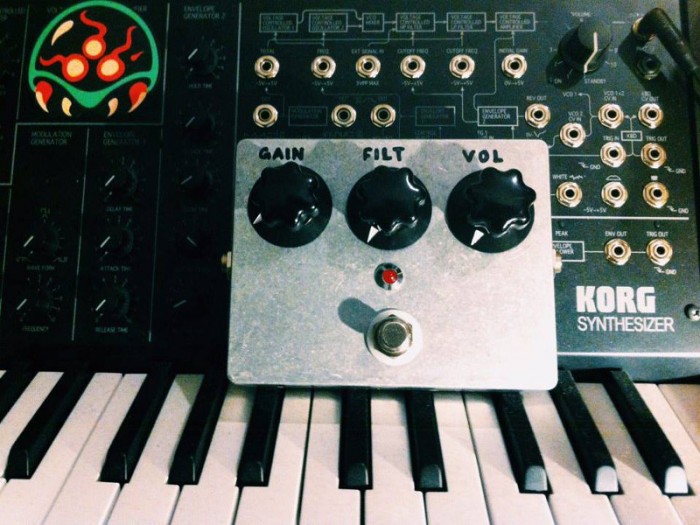

This is my first build - it's a Rat clone (original 1986 circuit). Had it sitting in a drawer the last year or so, because it wasn't working when I finished it
I'm just kinda stupid though and hadn't seen that I broke one of the board wires off during installation into the enclosure. Decided to duke it out with the soldering iron yesterday and here we go, a new/old distortion box!

Didn't reaaaaallly want to sharpie it, but I kept forgetting what each pot was for. It looked better with no lettering - more old school radio-gizmo style.

Haven't tested it with the pictured MS20 yet buttttt it sounds good on guitar! (brb gonna play distorted synth for the next 6-18 hours)

[cherler]

I've abandoned vero projects for similar reasons, it's always some little short you can't see. Where'd you get those knobs though? They look awesome.

[digi2t]

Aion LAB Series L5 preamp. Great looking board, very elegant enclosure. Hat's off to Kevin at Aion for some fine products.





The Refractor (Klon clone) has also become a fav.

[purpleshoes]

I've abandoned vero projects for similar reasons, it's always some little short you can't see. Where'd you get those knobs though? They look awesome.

They're made by a company called Mentor. I bought them from Farnell (element14) in the UK. They have a few diff sizes but they don't make really small ones anymore, sucks.

[DRodriguez]

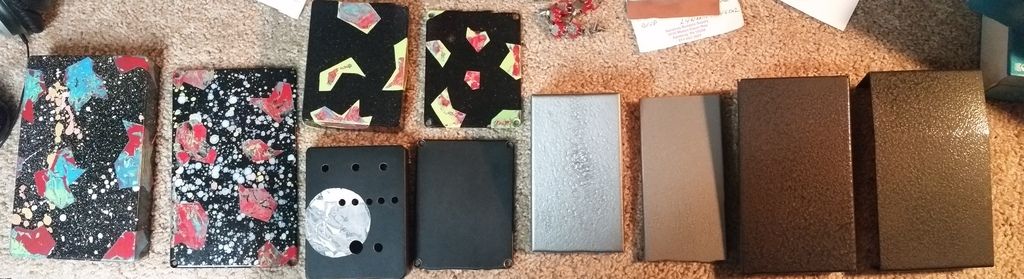

Got around to doing some finishing this Thanksgiving.

Those enclosures on the left half in particular are gorgeous.

[jrfox92]

[whoismarykelly]

Aion LAB Series L5 preamp. Great looking board, very elegant enclosure. Hat's off to Kevin at Aion for some fine products.





The Refractor (Klon clone) has also become a fav.

Is this PPP's new print method for one-offs? Looks real nice in the pictures.

[hotknife]

Aion LAB Series L5 preamp. Great looking board, very elegant enclosure. Hat's off to Kevin at Aion for some fine products.

Gretchen. That's so fucking rad!

[Strange Tales]

I haven't had a chance to play in forever. But I built these recently.

[DannDubbleEwe]

Everything here = SO FINE.

[Strange Tales]

Alright this one I'm really proud off, I successfully hand-soldered a MI Kinks, which is basically all 0402. Besides for one 1M ohm resistor that shot off into the nether (that I somehow don't have a replacement for), everything was a success. Top 2 circuits are working, hoping to find at least a 0603 1M ohm lying around so I complete the bottom circuit. So fucking stoked. Was difficult, but a lot of fun.

(Left the picture big for that sweet, sweet, i'm bragging detail.)

NSFW: show

[Jwar]

Aion LAB Series L5 preamp. Great looking board, very elegant enclosure. Hat's off to Kevin at Aion for some fine products.





The Refractor (Klon clone) has also become a fav.

Good God this is insanely cool!!!

Since it's asked question here....can you tell me where you got those knobs? Those things are brilliant looking. The whole pedal is amazing.

[Bartimaeus]

Aion LAB Series L5 preamp. Great looking board, very elegant enclosure. Hat's off to Kevin at Aion for some fine products.





The Refractor (Klon clone) has also become a fav.

This so cool, and very well put together! I'm in the middle of a bunch of products, but I can definitely see this in my future.

[Dandolin]

I haven't had a chance to play in forever. But I built these recently.

How do you like the Ornament and Crime?
