Re: Detailed How to Build a Silvercrank

Post by jfrey »

Having trouble figuring out how to wire the stomp switch. Looking at this:
http://www.beavisaudio.com/techpages/StompboxWiring/

Not sure i get it.

Also the power jack I have only has 2 prongs, not 3. 1 long 1 short.
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
friendship wrote:one cool thing about living is that things get worse and worse and worse until you die
My music rec Twitter: https://twitter.com/MostlyEssential
Top
User avatar
jfrey
Supporter
Supporter
Posts: 5240
Joined: Wed Apr 14, 2010 10:58 am
Location: Boston, MA

Re: Detailed How to Build a Silvercrank

Post by jfrey »

D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
friendship wrote:one cool thing about living is that things get worse and worse and worse until you die
My music rec Twitter: https://twitter.com/MostlyEssential
Top
User avatar
tuffteef
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 7890
Joined: Tue May 26, 2009 7:05 pm
Location: Downunderverse

Re: Detailed How to Build a Silvercrank

Post by tuffteef »

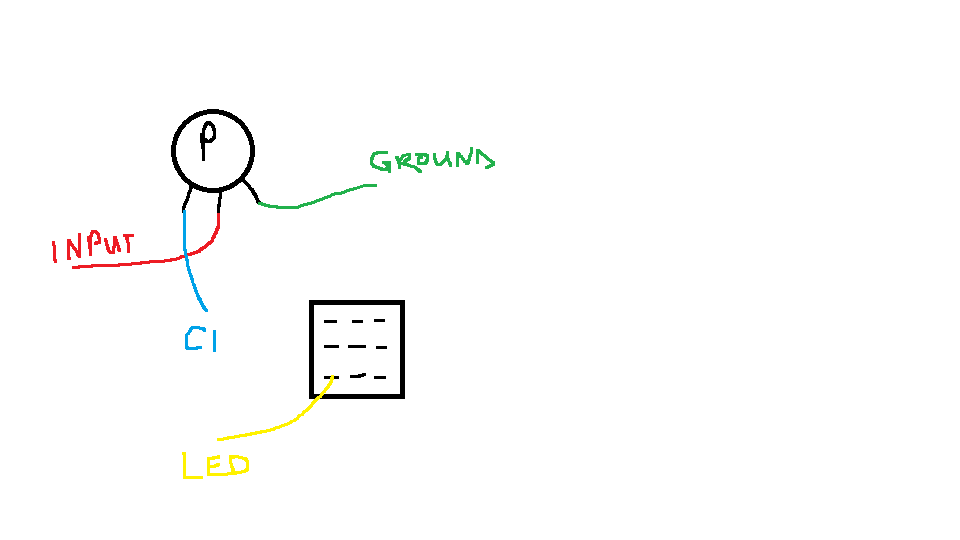

follow grounds from the beavis guide
hopefully i did it right or i will look like a goose
the green lines go to the tips of the jacks btw just incase its wrong
Top
User avatar
jfrey
Supporter
Supporter
Posts: 5240
Joined: Wed Apr 14, 2010 10:58 am
Location: Boston, MA

Re: Detailed How to Build a Silvercrank

Post by jfrey »

Are these connections replacing or going on top of the connections shown in the original diagram?
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
friendship wrote:one cool thing about living is that things get worse and worse and worse until you die
My music rec Twitter: https://twitter.com/MostlyEssential
Top
User avatar
culturejam
Supporter
Supporter
Posts: 2381
Joined: Sun Jun 28, 2009 5:25 pm
Location: Nueva Yersey

Re: Detailed How to Build a Silvercrank

Post by culturejam »

I'm gonna guess replacing. You can't really have two wiring setups on one set of hardware.

Here's an alternative stompswitch wiring diagram:

Disclaimer #1: Co-Founder, Product Developer at Function f(x).
Top
User avatar
jfrey
Supporter
Supporter
Posts: 5240
Joined: Wed Apr 14, 2010 10:58 am
Location: Boston, MA

Re: Detailed How to Build a Silvercrank

Post by jfrey »

Is one wiring setup for the 3pdt better than the other?
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
friendship wrote:one cool thing about living is that things get worse and worse and worse until you die
My music rec Twitter: https://twitter.com/MostlyEssential
Top
User avatar
culturejam
Supporter
Supporter
Posts: 2381
Joined: Sun Jun 28, 2009 5:25 pm
Location: Nueva Yersey

Re: Detailed How to Build a Silvercrank

Post by culturejam »

jfrey wrote:Is one wiring setup for the 3pdt better than the other?

Not especially. I've just done it "my" way for so long that it's comfortable.
Disclaimer #1: Co-Founder, Product Developer at Function f(x).
Top
User avatar
jfrey
Supporter
Supporter
Posts: 5240
Joined: Wed Apr 14, 2010 10:58 am
Location: Boston, MA

Re: Detailed How to Build a Silvercrank

Post by jfrey »

Ok. So I'll be done with this tonight after work. Let's hope it works...

I made some alterations to the circuit which in retrospect I probably should have just left alone since it's my first project...

So far it's just about the messiest job in existence.
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
friendship wrote:one cool thing about living is that things get worse and worse and worse until you die
My music rec Twitter: https://twitter.com/MostlyEssential
Top
User avatar
tuffteef
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 7890
Joined: Tue May 26, 2009 7:05 pm
Location: Downunderverse

Re: Detailed How to Build a Silvercrank

Post by tuffteef »

jfrey wrote:Are these connections replacing or going on top of the connections shown in the original diagram?



replacing
Top
User avatar
Gone Fission
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 4926
Joined: Sat Dec 04, 2010 1:50 pm
Location: The ungovernable tribal regions southwest of D.C.
Contact:
Contact Gone Fission

Re: Detailed How to Build a Silvercrank

Post by Gone Fission »

Teej212 wrote:also, remove the 2.2m resistor and put in a diode in its place and you have a bazz fuss


Hmm. How would that work out as a performance-switchable feature, like on an extra stomp switch?
D.o.S. wrote:Broadly speaking, if we at ILF are dropping 300 bucks on a pedal it probably sounds like an SNES holocaust.
friendship wrote:death to false bleep-blop
UglyCasanova wrote:brb gonna slap my dick on my stomp boxes
Top
User avatar
jfrey
Supporter
Supporter
Posts: 5240
Joined: Wed Apr 14, 2010 10:58 am
Location: Boston, MA

Re: Detailed How to Build a Silvercrank

Post by jfrey »

Gone Fission wrote:
Teej212 wrote:also, remove the 2.2m resistor and put in a diode in its place and you have a bazz fuss


Hmm. How would that work out as a performance-switchable feature, like on an extra stomp switch?

That's what I did, with a toggle though.

Can't tell you how it works though, since it isn't...
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
friendship wrote:one cool thing about living is that things get worse and worse and worse until you die
My music rec Twitter: https://twitter.com/MostlyEssential
Top
User avatar
Here Lies The Fire
committed
committed
Posts: 260
Joined: Tue Dec 28, 2010 11:19 pm
Location: Oregon

Re: Detailed How to Build a Silvercrank

Post by Here Lies The Fire »

Ok as far as caps...

I have some Tantalum .1uF* Mylar/Flim .1uF*[some .10uF too], and Multilayer Ceramic .10uF*...
(actually listed in MFD but whatever)

can anyone tell me the differences as far as sound? ALSO what is with 50v Vs. 100v and so forth. ex. MLR104K50 / MLR104k100
Top
User avatar
BlindtoFaith
IAMILF
IAMILF
Posts: 2174
Joined: Thu Sep 30, 2010 9:57 pm

Re: Detailed How to Build a Silvercrank

Post by BlindtoFaith »

I want to try this bad!
Top
User avatar
Jero
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 11288
Joined: Fri Mar 12, 2010 1:12 am
Location: here

Re: Detailed How to Build a Silvercrank

Post by Jero »

Here Lies The Fire wrote:Ok as far as caps...
I have some Tantalum .1uF* Mylar/Flim .1uF*[some .10uF too], and Multilayer Ceramic .10uF*...
(actually listed in MFD but whatever)
can anyone tell me the differences as far as sound? ALSO what is with 50v Vs. 100v and so forth. ex. MLR104K50 / MLR104k100


So you have tantalums and ceramic caps in values of .1uf. A lot of the time tantalum caps will be polarized (+/- like electrolytics). The 50v/100v is their voltage rating. Just showing you not to exceed those voltages or the component will likely fail. In stomp boxes, you rarely exceed 9v, though certain effects can use 18 or 24v. In those effects, you'd want to be sure all of your components are rated high enough.
I make noise toys under Stomping Stones
[url=http://www.stompingstones.com[/url]
oldangelmidnight wrote:This is the classic ILF I love. Emotional highs and lows. Scooped mids in my heart all day long.
Top
User avatar
kbit
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 11509
Joined: Sun Dec 12, 2010 1:16 pm
Location: Philadelphia

Re: Detailed How to Build a Silvercrank

Post by kbit »

That diagram on how to wire the pots/jacks/switch is so helpful. I'm definitely going to be ordering parts to do this soon.

Also since this would be my first build, I have a question:
Should both pots be logarithmic, or would using a linear pot for the intensity knob be better?
