Get yer Fuzz Face PCBs Cheap!

Post by controlFreak »

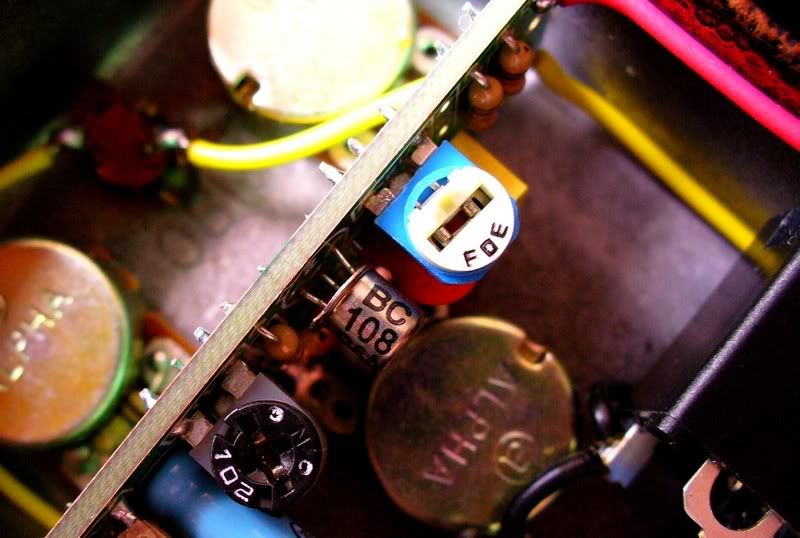

Set up for vertical mounting on board pots in a 1590NS enclosure. Pots for Gain- an input impedance control, Tone-an input cap blend, and volume. Space on board for filtering caps across both transistors and on Q2 collector. Trimpots for bias and fuzz settings. Low noise layout with ground planes. I'll put up a matching schematic too.

Two boards for $8: http://www.ebay.com/itm/NOC3-DIY-Fuzz-Face-PCB-With-Mods-Ready-To-Solder-/130924589120?pt=Guitar_Accessories&hash=item1e7bb6b040

I won't have any more made, get them before they're gone for good!





Last edited by controlFreak on Fri Jun 07, 2013 8:36 pm, edited 1 time in total.
Top
User avatar
controlFreak
committed
committed
Posts: 110
Joined: Thu Aug 30, 2012 5:38 pm
Location: North Carolina

Re: Get yer Modded Fuzz Face PCBs!

Post by controlFreak »

Schematic:
Top
User avatar
controlFreak
committed
committed
Posts: 110
Joined: Thu Aug 30, 2012 5:38 pm
Location: North Carolina

Re: Get yer Fuzz Face PCBs Cheap!

Post by controlFreak »

Help me make rent!
