TGD DIY Kit mods.

eveldave · Post by **eveldave** » Sun Oct 16, 2011 3:36 pm

Has anyone modded their TGD kit yet? I've followed up with a 4093 NAND IC and a feedback loop on the 2nd circuit. Sounds good/terrible but I messed up the spacing between the pots and switches controlling the 2nd IC. Maybe the pots are too big too - both 1 meg.

eveldave · Post by **eveldave** » Sun Oct 16, 2011 3:43 pm

: photo(1).JPG (83.77 KiB) Viewed 5066 times

Derelict78 · Post by **Derelict78** » Sun Oct 16, 2011 6:33 pm

I read somewhere that TGD doesnt really do anything in a feedback loop. Got any gut shots?

eveldave · Post by **eveldave** » Mon Oct 17, 2011 12:23 pm

Yeah I didn't think a feedback loop would work on tgd either, I've got it connecting the output of the extra circuit to the out of the tgd.

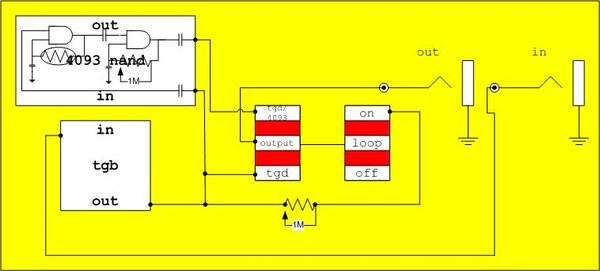

This diagram might explain it.

mecanikill · Post by **mecanikill** » Mon Nov 07, 2011 1:07 am

Any CV mods for it? I really have always wanted to get a TGD and if I could get cv on it I couldn't resist getting one to use with my synths!

Derelict78 · Post by **Derelict78** » Thu Apr 18, 2013 4:20 pm

All gone?

aen · Post by **aen** » Fri Apr 19, 2013 11:27 am

The store has been a little wonky, we're working on it. The kits will be back with screen printed and drilled enclosures.

Jwar · Post by **Jwar** » Sun Apr 21, 2013 11:41 am

Any other circuits going to be offered Aen? I'd love a Baby Thunda kit!

aens_wife · Post by **aens_wife** » Tue Apr 23, 2013 10:43 pm

We aren't planning on ever doing to ECT circuit, but we are thinking about releasing a few other kits this summer (if it slows down enough to get them done!)

Bellyheart · Post by **Bellyheart** » Tue Apr 23, 2013 11:04 pm

Aw snap

ilovefuzz.com
