Another Tag Layout.....FZ1a

Post by Ben79 »

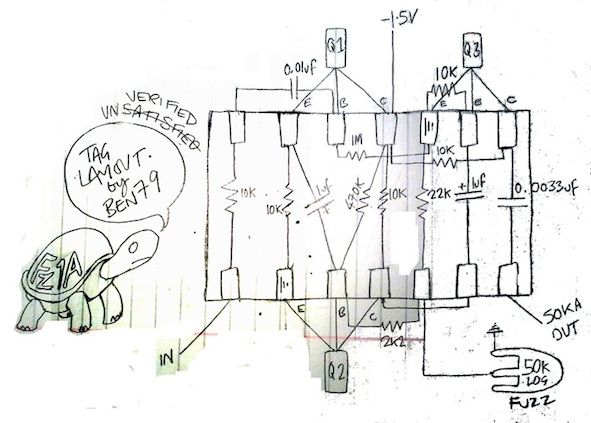

Having split that piece of tag board into 7 and 6 by accident, and used the 6 for a Fuzzrite - here's an FZ1a layout for a 7. Drawn on lined paper, photographed with a phone and and fixed up in Photoshop, which took ages. Hoping this one is going to rip out my teeth like a bereaved pig farmer?

Have I done the fuzz pot right? And might that wire I've added from Q2's collector do bad things, like interference etc?

(Erroneous extra 22k resistor removed and layout updated - thanks to eatyourguitar)

Last edited by Ben79 on Thu Apr 11, 2013 5:07 am, edited 2 times in total.
Top
User avatar
eatyourguitar
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3127
Joined: Sun Oct 03, 2010 12:37 pm
Location: USA, RI

Re: Another Tag Layout.....FZ1a

Post by eatyourguitar »

your 22k next to the fuzz pot is duplicated in the tag layout. you could free up some space or eliminate one off-board resistor.
WWW.EATYOURGUITAR.COM <---- MY DIY STUFF
Top
User avatar
Ben79
experienced
experienced
Posts: 510
Joined: Thu Nov 01, 2012 6:16 pm
Location: Germany
Contact:
Contact Ben79

Re: Another Tag Layout.....FZ1a

Post by Ben79 »

Thanks Rob. Fixed.
