Solder Burns Hurt.

Post by veteransdaypoppy »

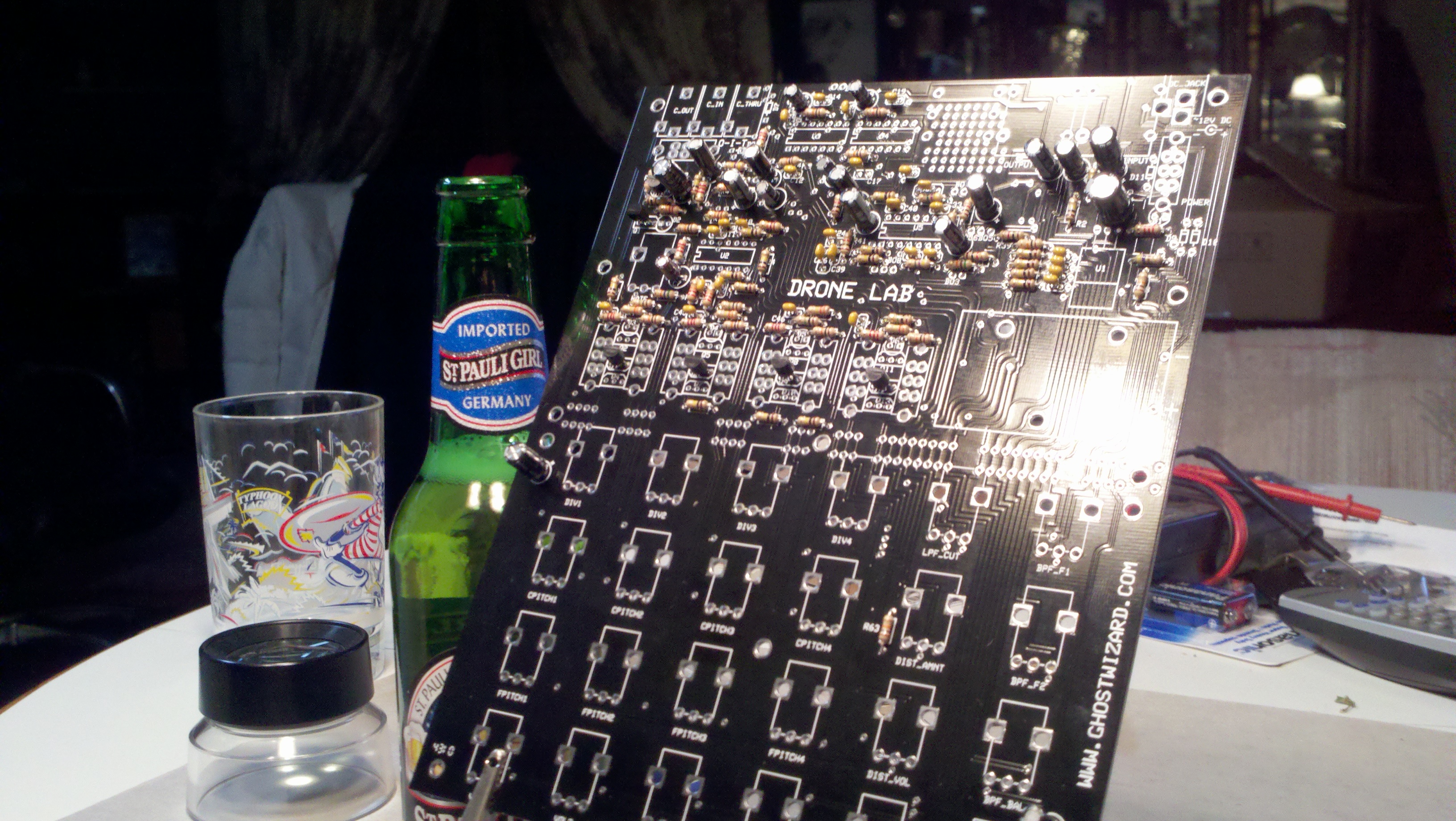

:love:
Can't wait til it's done.
well i guess, but i just don't know.

dollys
Top
User avatar
MEC
HERO
HERO
Posts: 4651
Joined: Sat Jan 01, 2011 4:04 pm
Location: Old North State

Re: Solder Burns Hurt.

Post by MEC »

Looks Awesome. What are you going to put it in?
http://youthministry.bandcamp.com/
http://remainstheband.bandcamp.com/
Achtane wrote:FUZZ ALL DAY MAN FUZZ IS GOD ALL OTHER EFFECTS ARE SHIT
Caesar wrote:Dude, can you get the fuck out of my b/s/t thread with your bullshit.
PumpkinPieces wrote: This isn't America, this is I Love Fuzz.
Mudfuzz wrote:Remember when we were all just a bunch of weirdos that liked fucked up shit and not just a bunch of nerds buying bling to impress each other online?
Top
User avatar
veteransdaypoppy
IAMILF
IAMILF
Posts: 2649
Joined: Wed Mar 25, 2009 1:17 am

Re: Solder Burns Hurt.

Post by veteransdaypoppy »

I'm really stoked! I got the full kit with the enclosure so I wouldn't botch something and make it all ugly after putting all the soldering work into it. This is my first like ultra big kit so I'm kind of nervous but I'm taking my time. I started it at like 3 and I'm just now getting to the LEDs and other diodes.. I'm a slow solderdude but I like to triple check stuff. :)
well i guess, but i just don't know.

dollys
Top
User avatar
BlindtoFaith
IAMILF
IAMILF
Posts: 2174
Joined: Thu Sep 30, 2010 9:57 pm

Re: Solder Burns Hurt.

Post by BlindtoFaith »

what the hell is it?!
Top
comtrails70
experienced
experienced
Posts: 501
Joined: Tue Aug 11, 2009 12:03 pm

Re: Solder Burns Hurt.

Post by comtrails70 »

BlindtoFaith wrote:what the hell is it?!


pcb reads drone lab
Last edited by comtrails70 on Wed Oct 17, 2012 4:16 pm, edited 1 time in total.
Top
User avatar
veteransdaypoppy
IAMILF
IAMILF
Posts: 2649
Joined: Wed Mar 25, 2009 1:17 am

Re: Solder Burns Hurt.

Post by veteransdaypoppy »

IT WORKS.
http://casperelectronics.com/for-sale-2/
There's some demo vids there.
well i guess, but i just don't know.

dollys
Top
User avatar
Gone Fission
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 4927
Joined: Sat Dec 04, 2010 1:50 pm
Location: The ungovernable tribal regions southwest of D.C.
Contact:
Contact Gone Fission

Re: Solder Burns Hurt.

Post by Gone Fission »

Aloe plant. Haven't needed it since getting my Weller station, but I did back in my RS-iron days.
D.o.S. wrote:Broadly speaking, if we at ILF are dropping 300 bucks on a pedal it probably sounds like an SNES holocaust.
friendship wrote:death to false bleep-blop
UglyCasanova wrote:brb gonna slap my dick on my stomp boxes
Top
User avatar
Achtane
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 14311
Joined: Mon Sep 20, 2010 2:09 am
Location: under the manchineel

Re: Solder Burns Hurt.

Post by Achtane »

Very cool man! Post a pic!
GASing for a Drone Lab now...I wonder if buying the components separately would be much cheaper than getting the whole kit.
http://www.youtube.com/watch?v=Louy7zH9guw
sonidero wrote:Roll a plus 13 for fire and with my immunity to wack I dodge the cough and pass a turn to chill and look at these rocks...
kbithecrowing wrote:Making out with my girl friday night, I couldn't stop thinking about flangers.
Top
User avatar
Jero
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 11288
Joined: Fri Mar 12, 2010 1:12 am
Location: here

Re: Solder Burns Hurt.

Post by Jero »

Achtane wrote:Very cool man! Post a pic!
...I wonder if buying the components separately would be much cheaper than getting the whole kit.

I feel like that's a big yes, at least if you have somewhat of a stock already.
I make noise toys under Stomping Stones
[url=http://www.stompingstones.com[/url]
oldangelmidnight wrote:This is the classic ILF I love. Emotional highs and lows. Scooped mids in my heart all day long.
Top
User avatar
Achtane
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 14311
Joined: Mon Sep 20, 2010 2:09 am
Location: under the manchineel

Re: Solder Burns Hurt.

Post by Achtane »

Indeed it is, the components are $77 through Mouser. I gotta get one of these next paycheck!
http://www.youtube.com/watch?v=Louy7zH9guw
sonidero wrote:Roll a plus 13 for fire and with my immunity to wack I dodge the cough and pass a turn to chill and look at these rocks...
kbithecrowing wrote:Making out with my girl friday night, I couldn't stop thinking about flangers.
Top
User avatar
eatyourguitar
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3127
Joined: Sun Oct 03, 2010 12:37 pm
Location: USA, RI

Re: Solder Burns Hurt.

Post by eatyourguitar »

buy the PCB and everything else from mouser $120 total. but no plexiglass or case. buy the complete kit from casper is like $300 and the fully assembled is like $360. if you spend 12 hours on in then your working for $5/hour. and then your not saving money at all cause you could just buy it and work a real job. my point is that its another $180 for plexiglass and a battery holder. as much as I want it, I'm not paying that for plexiglass. and why such a huge markup on resistors. there really is no middle of the road option to get the plexi and still not get raped for resistors. he says not to use off board pots for fear of it being noisy but there is still no shielding on the fully assembled version so I dont know how exaggerated that is.
