Toggling between multiple non-adjacent components

Post by jfrey »

How do you do this? Say you need one switch that swaps several components for alternates, but these aren't adjacent in the circuit. Like say you wanted to swap 3 resistors or caps for different values.


Component 1 *Circuit Stuff* Component 2 *Circuit Stuff* Component 3


^ So none of the individual components are directly touching as I have poorly illustrated ^
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
friendship wrote:one cool thing about living is that things get worse and worse and worse until you die
My music rec Twitter: https://twitter.com/MostlyEssential
Top
User avatar
Scruffie
Admin
Admin
Posts: 4647
Joined: Sun Jun 07, 2009 8:46 pm
Location: London.. ish, Uk

Re: Toggling between multiple non-adjacent components

Post by Scruffie »

If I understand you correctly... you'd use a 3PDT and Treat Each Section of it seperatley so you'd have 3 x SPDT.

Then it's just a case of wiring it up like normal -
http://www.beavisaudio.com/techpages/Sw ... onents.gif
&
http://www.beavisaudio.com/techpages/Sw ... h2sets.gif
Top
User avatar
jfrey
Supporter
Supporter
Posts: 5240
Joined: Wed Apr 14, 2010 10:58 am
Location: Boston, MA

Re: Toggling between multiple non-adjacent components

Post by jfrey »

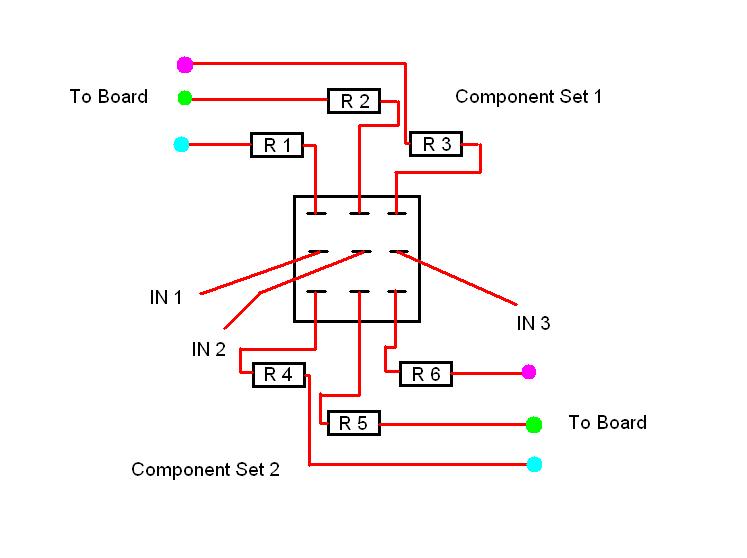

If I get what you're saying, using resistors as an example it would be wired like this? (Colored circles denote location on board)

D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
friendship wrote:one cool thing about living is that things get worse and worse and worse until you die
My music rec Twitter: https://twitter.com/MostlyEssential
Top
User avatar
Scruffie
Admin
Admin
Posts: 4647
Joined: Sun Jun 07, 2009 8:46 pm
Location: London.. ish, Uk

Re: Toggling between multiple non-adjacent components

Post by Scruffie »

Looks about right to me.
Top
User avatar
jfrey
Supporter
Supporter
Posts: 5240
Joined: Wed Apr 14, 2010 10:58 am
Location: Boston, MA

Re: Toggling between multiple non-adjacent components

Post by jfrey »

Cool, thanks.
D.o.S. wrote:You're like a walking Mad Men episode.
BitchPudding wrote:DO WHAT MUST BE DONE, LORD JFREY.
friendship wrote:one cool thing about living is that things get worse and worse and worse until you die
My music rec Twitter: https://twitter.com/MostlyEssential
Top
User avatar
Fuzzrociouspedals
committed
committed
Posts: 445
Joined: Tue Feb 08, 2011 6:04 pm
Location: Mount Laurel, NJ
Contact:
Contact Fuzzrociouspedals

Re: Toggling between multiple non-adjacent components

Post by Fuzzrociouspedals »

And they even have 4pdt switches at Smallbearelec.com if you need to toggle 4 components simultaneously!
Top
User avatar
Jero
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 11288
Joined: Fri Mar 12, 2010 1:12 am
Location: here

Re: Toggling between multiple non-adjacent components

Post by Jero »

Fuzzrociouspedals wrote:And they even have 4pdt switches at Smallbearelec.com if you need to toggle 4 components simultaneously!

Yeap! I've got a couple laying around for a project I keep putting off :facepalm:
