I’m working on a new project and I’m running into a few mental hang ups. I’m working on a 6 band eq using clear 9mm pots with LEDs in each. My goal is to fit it into a 125b with top jacks.
Should I just have one CLR feeding 6 LEDs? Should I consider having a separate Daugherboard to mount the pots on (ex banana fx)
Multiple LED pots?
Moderator: Ghost Hip
Forum rules
The DIY forum is for personal projects (things that are not for sale, not in production), info sharing, peer to peer assistance. No backdoor spamming (DIY posts that are actually advertisements for your business). No clones of in-production pedals. If you have concerns or questions, feel free to PM admin. Thanks so much!
The DIY forum is for personal projects (things that are not for sale, not in production), info sharing, peer to peer assistance. No backdoor spamming (DIY posts that are actually advertisements for your business). No clones of in-production pedals. If you have concerns or questions, feel free to PM admin. Thanks so much!
-
AZX309
- committed
- Posts: 444
- Joined: Thu Apr 09, 2015 10:59 pm
Multiple LED pots?
https://www.instagram.com/maskaudioelectronics/
D.o.S. wrote:you're not my real dad
Corey Y wrote: Tone is in the dingus.
-
multi_s
- IAMILF
- Posts: 2095
- Joined: Mon Feb 15, 2010 9:00 pm
Re: Multiple LED pots?

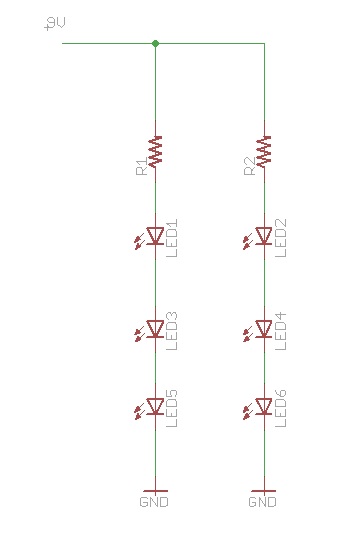

you can either run a few in series depending on the color/voltage drop of the leds and the supply voltage. Then put a few sets of series LEDS in parallel. For each leg in the parallel though you should put it's own resistor technically. something like the attached.
Unless you meant that each led will light up according to the power in the band it's pot filters. thats more complicated but doable
but i get the impression form the question you just want all the pots to light up the same.
Unless you meant that each led will light up according to the power in the band it's pot filters. thats more complicated but doable
but i get the impression form the question you just want all the pots to light up the same.- Attachments
-
- Untitled.jpg (17.47 KiB) Viewed 1825 times
-
AZX309
- committed
- Posts: 444
- Joined: Thu Apr 09, 2015 10:59 pm
Re: Multiple LED pots?
nope this is perfect for what i'm trying to achieve, thank you!
still debating on the daughterboard. its not going to be that tight but it would allow for a somewhat cleaner layout.
still debating on the daughterboard. its not going to be that tight but it would allow for a somewhat cleaner layout.
