Etchings of the Pedals
Posted: Fri Jun 09, 2017 1:01 pm
by JonnyAngle

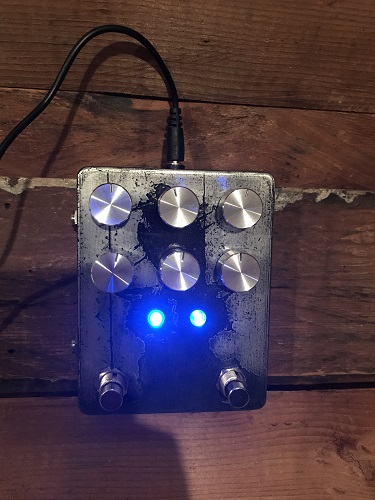

Lights on:
- Photo Jun 08, 9 55 04 PM.jpg (94.87 KiB) Viewed 8683 times

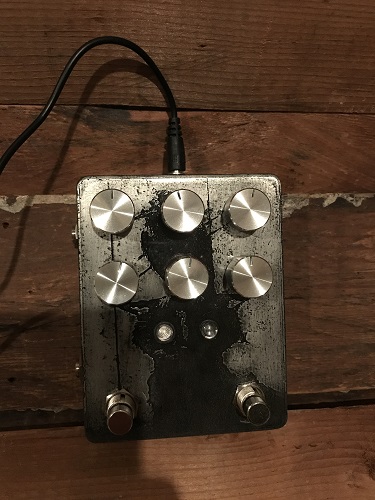

Lights off:
- Photo Jun 08, 9 55 45 PM.jpg (95.93 KiB) Viewed 8683 times
Everything retroactive can be seen on my IG:
https://www.instagram.com/droppingacidpedaletching/
Re: Etchings of the Pedals
Posted: Fri Jun 09, 2017 1:03 pm
by JonnyAngle

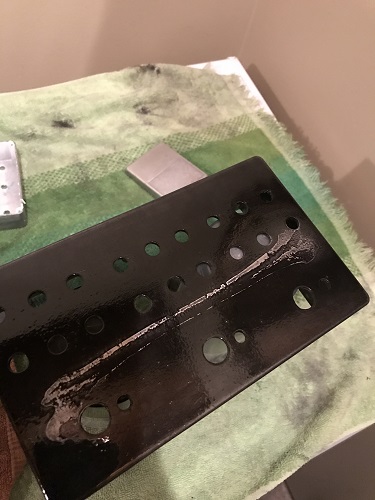

BONE-r for the x3 Boneshaker
- Photo Jun 07, 12 46 06 PM.jpg (81.91 KiB) Viewed 8680 times
Re: Etchings of the Pedals
Posted: Fri Jun 09, 2017 1:03 pm
by Strange Tales
What's the source on those knobs? They are exactly the thing that I'm looking for right now. (Provided they are D shaft, but if they're for something else I can work it probably.)
Re: Etchings of the Pedals
Posted: Fri Jun 09, 2017 1:04 pm
by JonnyAngle
Strange Tales wrote:What's the source on those knobs? They are exactly the thing that I'm looking for right now. (Provided they are D shaft, but if they're for something else I can work it probably.)
ask drodriguez, theyre his
Re: Etchings of the Pedals
Posted: Fri Jun 09, 2017 2:15 pm
by DRodriguez
Strange Tales wrote:What's the source on those knobs? They are exactly the thing that I'm looking for right now. (Provided they are D shaft, but if they're for something else I can work it probably.)
https://www.mammothelectronics.com/coll ... ka-18x12un
Quality control wasn't great though. Bought 50 and about 1/3 of them were in the blem territory. . Not D shaft, set screw. And a little bigger than 1/4, so they kinda fit a little off center.
Recently switched to these instead:
http://www.bitcheslovemyswitches.com/#! ... y=23336003
Significantly better quality and bitches love my switches dude is rad.
Re: Etchings of the Pedals
Posted: Sat Jun 10, 2017 9:53 am
by JonnyAngle
- IMG_3211.PNG (529.99 KiB) Viewed 8648 times

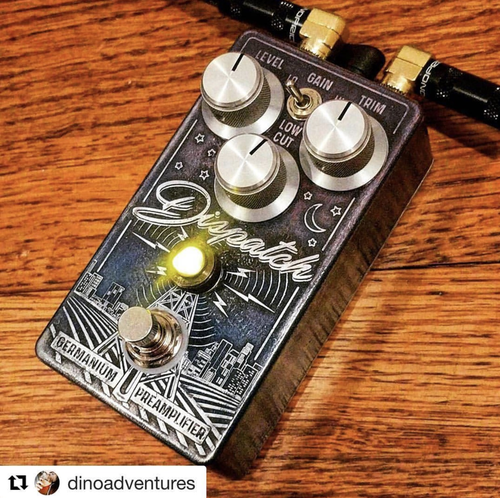

Germanium preamp built by Ed Morley. Art by Jerry Friedman.
Re: Etchings of the Pedals
Posted: Wed Jun 14, 2017 8:06 am
by JonnyAngle

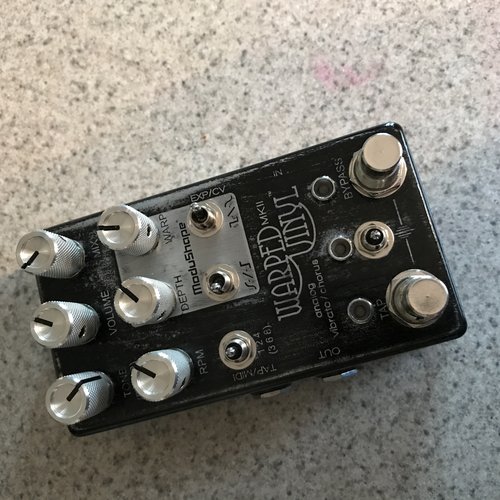

- IMG_3244.JPG (81.93 KiB) Viewed 8610 times
For cantrememberanything
Re: Etchings of the Pedals
Posted: Wed Jun 14, 2017 8:09 am
by ibarakishi
wow! warped vinyl looks great!
Re: Etchings of the Pedals
Posted: Wed Jun 21, 2017 12:42 pm
by DRodriguez
JonnyAngle wrote:BONE-r for the x3 Boneshaker
Photo Jun 07, 12 46 06 PM.jpg
Updates:
The shake shack is almost done, just have to do the final wiring.
Re: Etchings of the Pedals
Posted: Wed Jun 21, 2017 10:03 pm
by JonnyAngle
You should explain the theory behind this.
Re: Etchings of the Pedals
Posted: Wed Jun 21, 2017 10:59 pm
by jrfox92
JonnyAngle wrote:You should explain the theory behind this.
DRodriguez wrote:Gonna load three into one enclosure the pedal controller for the tele terror. I was originally planning on building a high pass low pass filter for each of the three pickups, but this is cheaper and more versatile and gainy. One bone shaker for every 2 strings!
bonerer shakerer?
and then a spare for other non tele terror guitars. direct link to cheap dod:
http://shop.harmanpro.com/p/boneshaker?pp=20
DRodriguez wrote:I mean, it's not technically parallel, but it's close On the tele terror project, I have going has 3 diagonal pickups.
So I basically have isolated outputs for each pair of strings. I'm building a pedal that will have one multi-pin cable input, now a boneshaker per pickup, and a standard 1/4in output for separate FX chains.
Why? Because I was bored one day and morange gave me a free tele body that I butchered up.
Re: Etchings of the Pedals
Posted: Wed Jul 05, 2017 11:11 am
by JonnyAngle
- 1.JPG (111.86 KiB) Viewed 8466 times

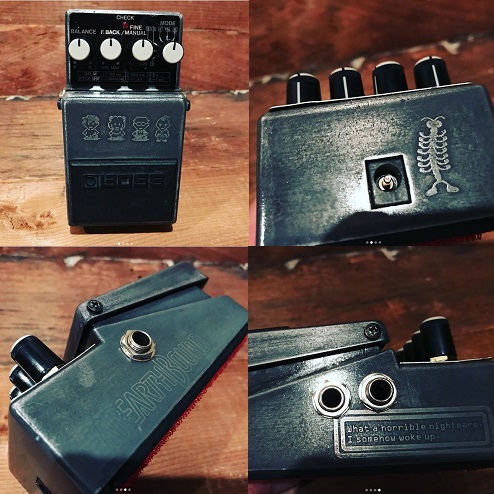

This one's for SergioMunoz!
Re: Etchings of the Pedals
Posted: Wed Jul 05, 2017 6:37 pm
by morange
Ahhh, too cool.
Re: Etchings of the Pedals
Posted: Sun Jul 09, 2017 10:49 pm
by JonnyAngle

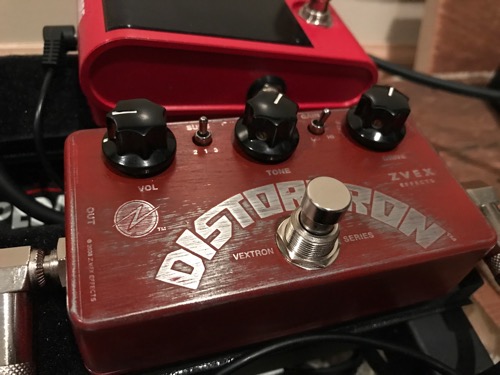

This is a boomerang pedal for me. I'm just going to keep this one forever.
- IMG_3412.JPG (60.55 KiB) Viewed 8412 times
Re: Etchings of the Pedals
Posted: Sun Jul 09, 2017 10:52 pm

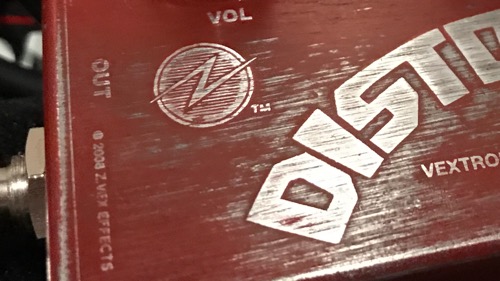

by JonnyAngle
- IMG_3414.JPG (57.85 KiB) Viewed 8411 times
