Why are dc power jacks usually off center?
Posted: Sun May 03, 2015 9:43 pm

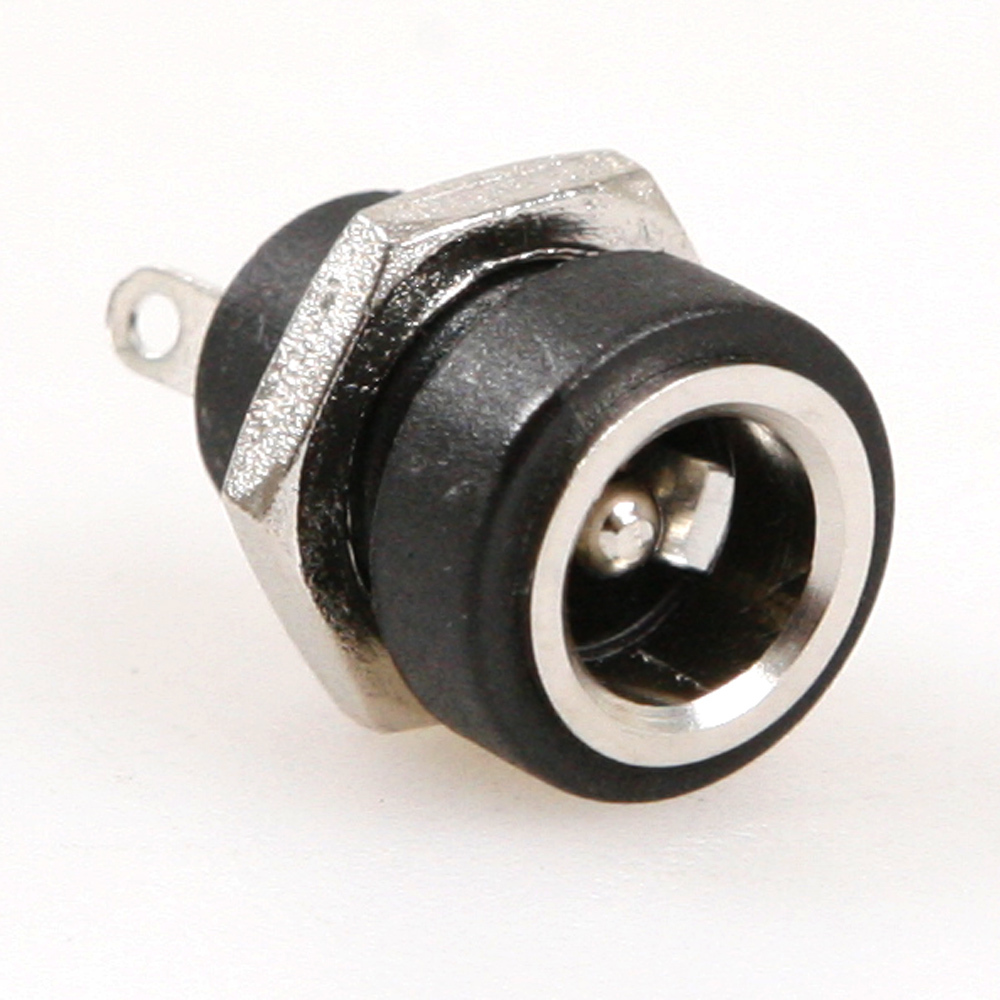

Like this:
Just curious.
Just curious.
but they aren't always off-centre.
Page 1 of 1
Re: Why are dc power jacks usually off center?
Posted: Sun May 03, 2015 10:24 pm
in the one you have shown the 9v+ connection is a sprung metal clip which is in the blanked-off off-centre bit next to the socket. it's my guess that a big tensioned metal clip like that helps keep a tight grip on the jack so preventing possible shorting or the jack getting knocked out too easily.
but they aren't always off-centre.
