Page 41 of 45
Re: Custom Shit
Posted: Tue Oct 14, 2014 12:02 am
by LaoWiz
- image.jpg (137.03 KiB) Viewed 6582 times

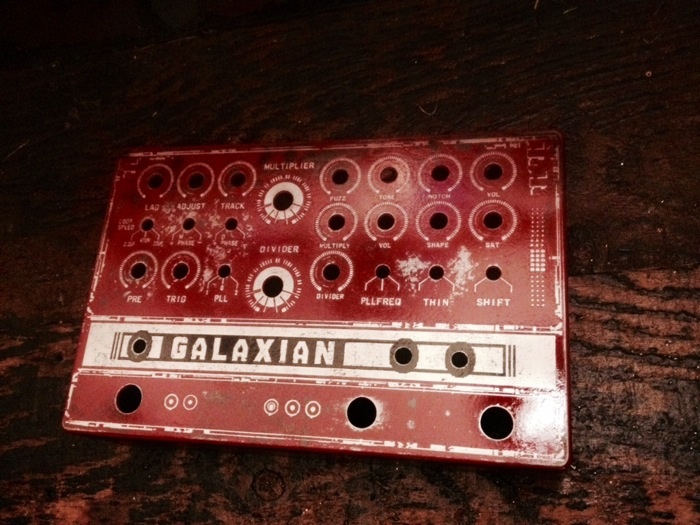

Finally boxing up one of my Dino/uKtoecutter PLL boards into a huge enclosure. Still trying (slowly) new things to my PLL circuit that I've had on the big breadboard for ages. So this is the straight clone with some mods feeding into a Megalith. Should be good enough for awhile.
Re: Custom Shit
Posted: Tue Oct 14, 2014 12:05 am
by Chankgeez
LaoWiz wrote: So this is the straight clone with some mods feeding into a Megalith. Should be good enough for awhile.
Re: Custom Shit
Posted: Tue Oct 14, 2014 12:13 am
by goroth
Please Laowiz, don't do anything too drastic to space-time with that thing.
Re: Custom Shit
Posted: Tue Oct 14, 2014 12:15 am
by doommeow
goroth wrote:Please Laowiz, don't do anything too drastic to space-time with that thing.
Einstein-megalith bridge ftw.
Re: Custom Shit
Posted: Tue Oct 14, 2014 4:35 am
by fuzzonaut
Re: Custom Shit
Posted: Tue Oct 14, 2014 10:11 am
by Hyphen Nation
dude, amazing!
Re: Custom Shit
Posted: Tue Oct 14, 2014 11:43 am
by intothegroove
Re: Custom Shit
Posted: Tue Oct 14, 2014 12:05 pm
by multi_s
intothegroove wrote::omg:
absolutely ridiculous!
Re: Custom Shit
Posted: Tue Oct 14, 2014 3:42 pm
by Eivind August
multi_s wrote:intothegroove wrote::omg:
absolutely ridiculous!
Re: Custom Shit
Posted: Tue Oct 14, 2014 5:40 pm
by Gigahearts_FX
LaoWiz wrote:image.jpg
Finally boxing up one of my Dino/uKtoecutter PLL boards into a huge enclosure. Still trying (slowly) new things to my PLL circuit that I've had on the big breadboard for ages. So this is the straight clone with some mods feeding into a Megalith. Should be good enough for awhile.
killer. I need to build mine sometime.
I had the v1 board that I modded but never boxed.
Have a spare v2 board which only needed a couple trace cuts so I should build that at some point.
Re: Custom Shit
Posted: Tue Oct 14, 2014 7:26 pm
by LaoWiz
Thanks, ya'll, gonna be a fun one
Gigahearts_FX wrote:killer. I need to build mine sometime.
I had the v1 board that I modded but never boxed.
Have a spare v2 board which only needed a couple trace cuts so I should build that at some point.
Yea I have two of the v1 boards somewhere but haven't seen them in a year. One thing I wish I didn't do was to move controls around in my graphics to where I can only mount able half of the PCB mounted pots and switches. Now I have a lot of off board wiring to do.
Re: Custom Shit
Posted: Tue Oct 14, 2014 10:34 pm
by hatshirt
the Galaxian looks killer man!!!
Re: Custom Shit
Posted: Sat Nov 15, 2014 3:08 am
by LaoWiz
- Roctave 1.jpg (272.31 KiB) Viewed 6376 times

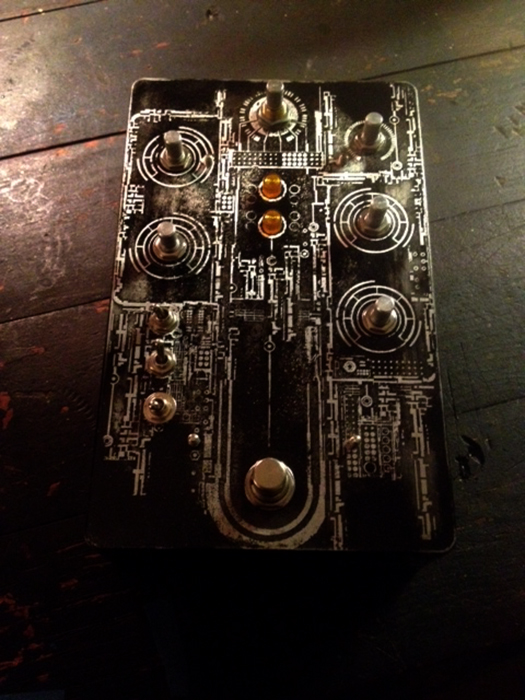

intothegroove's Roctave divider. well overdue.
Re: Custom Shit
Posted: Sat Nov 15, 2014 3:20 am
by Hyphen Nation
the hotness!
Re: Custom Shit
Posted: Sat Nov 15, 2014 3:24 am
by LaoWiz

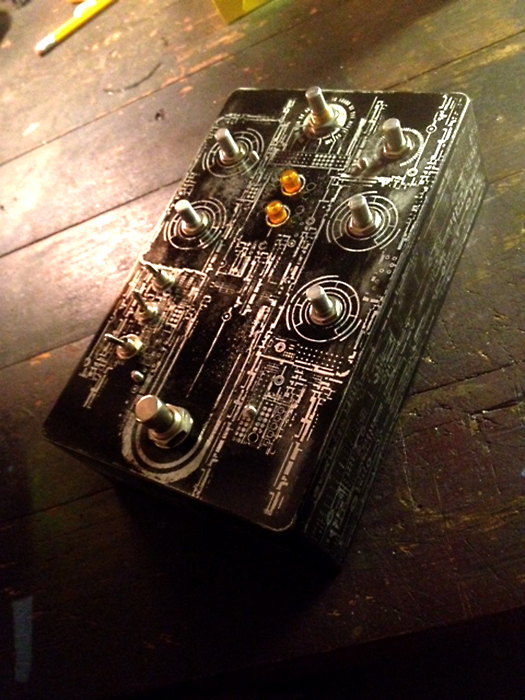

- Roctave 2.jpg (329.11 KiB) Viewed 6374 times
Next up, jrmy's Lunar Incantation and a delay beast for someone else. New job has left me almost no time to do any building. Won't be taking any custom builds for a good while.Which I think will be good as I will spend more time playing and also slowly developing/breadboard old ideas that have been on the backburner.
Got the Galaxian/PLL fired up. Since it was such a huge box I had enough room to throw a Megalith workalike into it and that part ain't no good so I'm gonna stick a Tone Machine circuit in there at the backend instead. With the specified phase locked loop chip it sounds good but I got some NOS phase locked loop chips (a different style plus NOS/so they say) and the beast behaves much differently. Haven't crossed checked the data sheets but it sounds a more musical and more fucked up (but in a good way) than the stock specified version. Will probably tinker with a design around this chip for awhile. Someday...
