Re: Let's see your finished DIY projects!
Posted: Fri Mar 23, 2018 8:04 pm
Chankgeez wrote:This page.
Page 360 of 408
Re: Let's see your finished DIY projects!
Posted: Fri Mar 23, 2018 8:41 pm
Womp womp
Re: Let's see your finished DIY projects!
Posted: Sat Mar 24, 2018 12:16 am
Hunter Fuzz. (Devi Shoegazer Work a like) PCB layout by me. Etched Face plate by me as well. enjoy
Hope you like it!
-Mike-
Hope you like it!
-Mike-
Re: Let's see your finished DIY projects!
Posted: Sat Mar 24, 2018 11:51 am
Everything on the last two pages! So much nice stuff.
Re: Let's see your finished DIY projects!
Posted: Mon Mar 26, 2018 11:12 am
Very cool builds indeed, that Hunter is gorgeous, inside and out
- and the breadboard pedal is just genius.

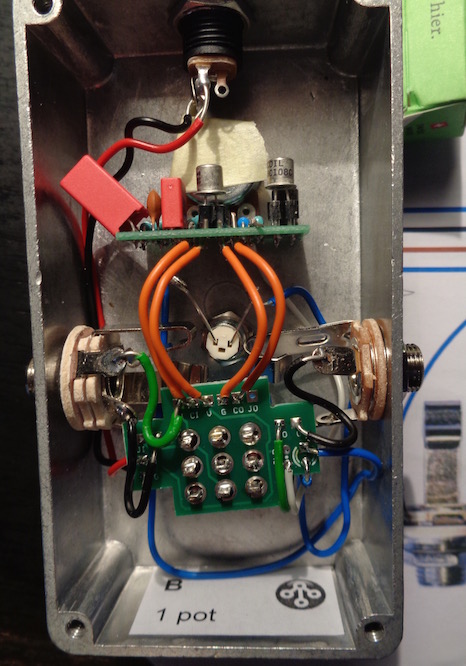

I'm still doing easy stuff and just finished one of the 1-knob fuzzes from Fuzzdog, the 66BALLS. Sounds great, pretty aggressive and has lots of volume on tab.
It's supposed to have a BC108 (Q2) and a BC109 (Q1) - I used a BC108C and a BC109B (or C ? - I already forgot). I didn't find them without B or C ...
Both are in sockets though, so I could swap them.
- and the breadboard pedal is just genius. I'm still doing easy stuff and just finished one of the 1-knob fuzzes from Fuzzdog, the 66BALLS. Sounds great, pretty aggressive and has lots of volume on tab.
It's supposed to have a BC108 (Q2) and a BC109 (Q1) - I used a BC108C and a BC109B (or C ? - I already forgot). I didn't find them without B or C ...
Both are in sockets though, so I could swap them.
- balls66guts.jpg (111.63 KiB) Viewed 5232 times
Re: Let's see your finished DIY projects!
Posted: Mon Mar 26, 2018 1:15 pm
The B and C designations are for gain ranges. The Cs are the higher gain of the two, and you can swap in 549's and 550's and 548's which are the end of life replacements for 109s and 108s. It's worth auditioning the various gain ranges there imo. The 550 is the low noise variety. They are cheap AF and have fantastic gain, up to 800 if memory serves. I have bags of them
The pedal looks great man. Nice work
The pedal looks great man. Nice work
Re: Let's see your finished DIY projects!
Posted: Mon Mar 26, 2018 1:49 pm
Thanks for the nice words and the clarification. I just checked if Musikding has the 550's - and yep they do have the C's, gain range from 420 up to 800 (good memory thereBetterOffShred wrote:The B and C designations are for gain ranges. The Cs are the higher gain of the two, and you can swap in 549's and 550's and 548's which are the end of life replacements for 109s and 108s. It's worth auditioning the various gain ranges there imo. The 550 is the low noise variety. They are cheap AF and have fantastic gain, up to 800 if memory serves. I have bags of them
The pedal looks great man. Nice work
!).Re: Let's see your finished DIY projects!
Posted: Mon Mar 26, 2018 10:59 pm
Sure man, I would recommend buying a selection of all three varieties in all 3 gain ranges. They all sound good
Re: Let's see your finished DIY projects!
Posted: Sun Apr 01, 2018 11:35 am
I picked up this old wah/vol and converted it to a regular wah with a DPDT.
I thought it would be easy - like just replacing the switch and disconnecting a few wires - but it was a bit of a headache and I've had to get better at reading schematics to work out how to do it. Sounds pretty nice although the pot might not have much fight left in it. It's a much lighter unit than my more modern Vox wah.
I thought it would be easy - like just replacing the switch and disconnecting a few wires - but it was a bit of a headache and I've had to get better at reading schematics to work out how to do it. Sounds pretty nice although the pot might not have much fight left in it. It's a much lighter unit than my more modern Vox wah.
Re: Let's see your finished DIY projects!
Posted: Sun Apr 01, 2018 1:07 pm
Did it come with that super fresh bag?
Re: Let's see your finished DIY projects!
Posted: Sun Apr 01, 2018 1:56 pm
No, I got that through an Act of Kindness from someone online. It's Vox branded, not sure how old it is.
Re: Let's see your finished DIY projects!
Posted: Tue Apr 10, 2018 6:14 pm
Guess this can go here:
I wanted to try doing a Sonic Crayon-like finish to a pedal (EQD Dispatch Master with two mods: more reverb + momentary delay wobble stomp, for those wondering). It was fun and very educational! Learned a few more things for the next time I try something similar.
[youtube]http://www.youtube.com/watch?v=vrro9RWqChs[/youtube]
Re: Let's see your finished DIY projects!
Posted: Tue Apr 10, 2018 6:23 pm
Looks really nice. I remember reading and/or seeing a vid on DIYstompboxes (I think) that he actually uses a tooth brush to do his finishes. Dilutes the paint, dips the brush and rubs the bristles with his thumb to flick it on the sides.
Re: Let's see your finished DIY projects!
Posted: Tue Apr 10, 2018 6:28 pm
Tnx! I did that on my previous build (Arcadiator), but figured I'd try without for this one. I kind of like both.
Re: Let's see your finished DIY projects!
Posted: Tue Apr 10, 2018 10:21 pm
Yeah, ok but let’s talk about “more reverb.”
