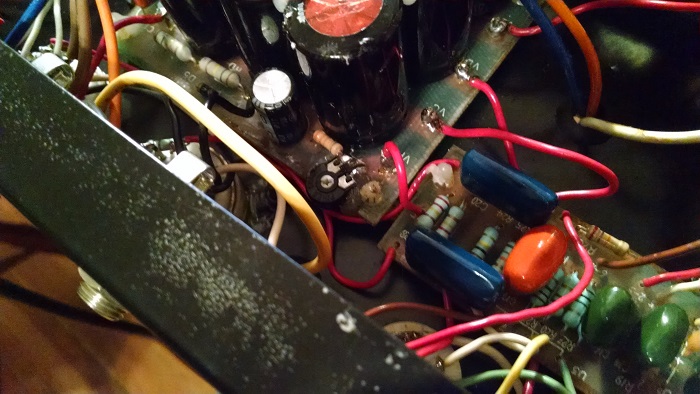

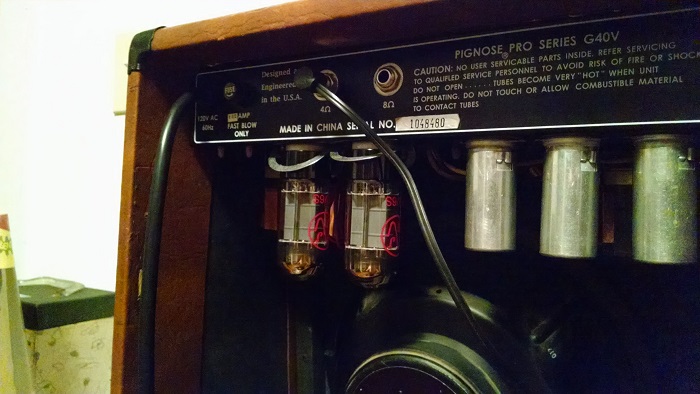

Not as pretty as all the pedals but I have a pignose g40v I've done a bunch of circuit mods too and today just added a bias pot and replaced the 6l6s with a pair of JJ 6v6S. Really liking them so far, I also think it'll help take some of the strain off the PT with the lower heater current.

DIY multi-effects unit. Tremolo and Fuzz.
[youtube]http://www.youtube.com/watch?v=fEIOU4FsPIU[/youtube]

incredible, professor tortoise

Here's a simple swell pedal thingy. It's a VCA with a footswitch controlled envelope generator.

truth.hz wrote:Here's a simple swell pedal thingy. It's a VCA with a footswitch controlled envelope generator.

Damn, that's hella-tight.

Thanks guys!

I think this project will develop further into:

A parallel clean thru, the VCA path with an FX loop, so you can blend in the loop via the gated EG footswitch.

I finished the drawing and nearly done with the PCB, just gotta double check everything.

good for a noise gigger ma bobber put some awful noise in the in hole and shoot your poop through the speakers with ur footsies I dig it man we really needed this

I broke the most important pot on accident

Other than that though, thing is up and running, doing 4 voicecards tomorrow.

truth.hz wrote:



Here's a simple swell pedal thingy. It's a VCA with a footswitch controlled envelope generator.

Saw the on diystompboxes. Love it, something ive wanted to do for a long time....great job!

DBA Sound Saw (work-a-like) -> DBA Harmonic Transformer (work-a-like) -> Order Switch<-> Madbeans Moodring -> Blend / FX loop

ENJOY THE MADNESS!!!







;-)

-Mike-

That's cray!

Sweet!

must...fiddle with...knobs!

Been a long time! I think it's been a year since I've made a pedal. This half counts as I am rehousing my diy megalith. Now to etch and paint and drill holes and populate. I miss this shit....
