RM-1N

yallerhon · Post by **yallerhon** » Sun Dec 08, 2013 11:49 pm

Separate expression controls would be insanely useful!

intothegroove · Post by **intothegroove** » Mon Dec 09, 2013 6:17 pm

Posted some bass demos on the front page!!! :joy:

These are just some of the sounds that can come out of this thing. Going to get a drum demo and a drone demo going too! :omg:

Something I found really cool about this verb is that it's a spring verb at heart but with the feedback maxed out and using the reverb mix you can turn it into a very big, atmospheric and very creepy sounding verb! not to mention all the possibilities with the gains and the DRONE and the feedback together.... OH FUCK ME :animal:

intothegroove · Post by **intothegroove** » Mon Dec 09, 2013 10:27 pm

Got a drum sample and a massive drone session posted up on the front page! :joy:

yallerhon · Post by **yallerhon** » Mon Dec 09, 2013 10:54 pm

I keep throwing money at the my screen but nothing's happening!

intothegroove · Post by **intothegroove** » Mon Dec 09, 2013 10:58 pm

I am trying to get it built as fast as I can! :thumb:

nevada · Post by **nevada** » Wed Dec 18, 2013 11:52 am

Very cool. Is there any way to put a lowpass filter into this?

intothegroove · Post by **intothegroove** » Sat Dec 21, 2013 5:33 pm

nevada wrote:Very cool. Is there any way to put a lowpass filter into this?

thanks! I'm glad you like it. Yes actually I think I will include the tone control as standard with it :thumb:

intothegroove · Post by **intothegroove** » Sat Dec 21, 2013 5:35 pm

Sorry I haven't been updating this for a bit. Things have been extremely busy with Christmas coming next week, but I have managed to experiment and find out what can work with this circuit. The first page has all the details, thanks everybody! :joy:

intothegroove · Post by **intothegroove** » Mon Dec 23, 2013 12:07 am

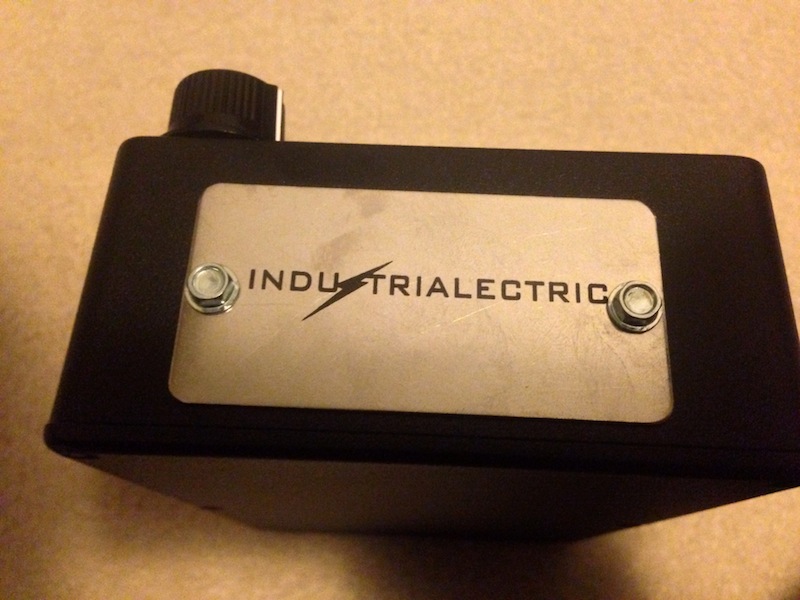

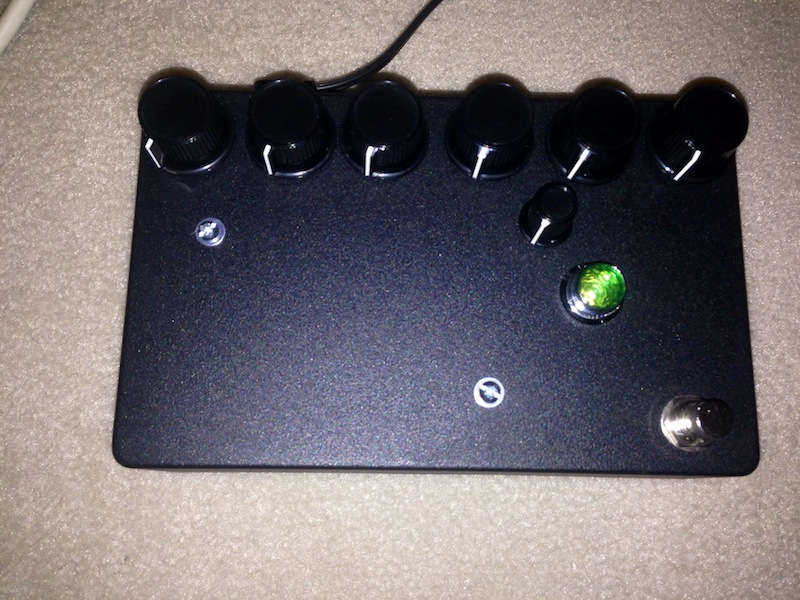

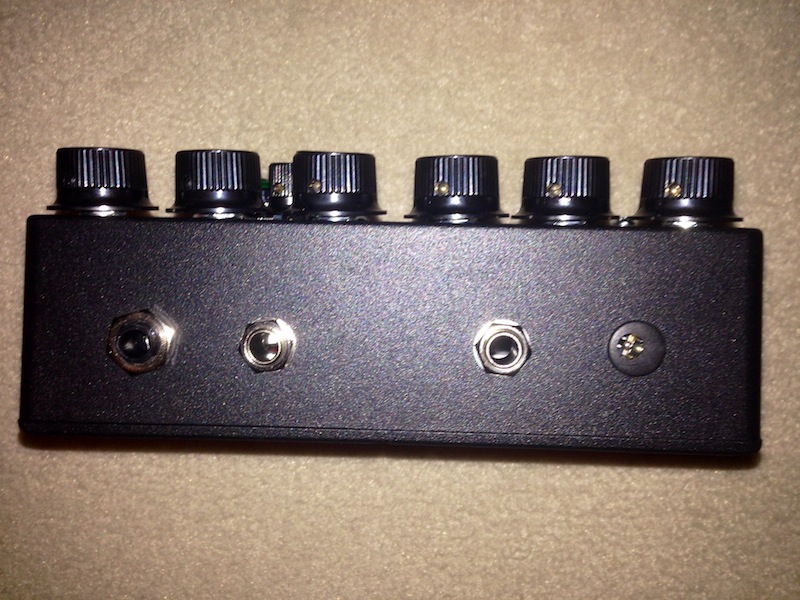

This is the final version of the RM-1N, added a tone knob and unfortunately because my circuits are so obscure, I can only get expression working for feedback. But it's still really killer and extremely versatile :joy:

I will be getting better pics up this week. :thumb:

nevada · Post by **nevada** » Tue Dec 24, 2013 11:43 pm

intothegroove wrote:Sorry I haven't been updating this for a bit. Things have been extremely busy with Christmas coming next week, but I have managed to experiment and find out what can work with this circuit. The first page has all the details, thanks everybody!

Excellent! May I ask, what is the signal path exactly? Does the reverb come at the front?

intothegroove · Post by **intothegroove** » Fri Dec 27, 2013 6:00 pm

nevada wrote:
intothegroove wrote:Sorry I haven't been updating this for a bit. Things have been extremely busy with Christmas coming next week, but I have managed to experiment and find out what can work with this circuit. The first page has all the details, thanks everybody!

Excellent! May I ask, what is the signal path exactly? Does the reverb come at the front?

I'm not to sure what you mean?

nevada · Post by **nevada** » Fri Dec 27, 2013 6:40 pm

Is this signal path Audio In > Reverb > Distortion > Filter > Audio Out?

intothegroove · Post by **intothegroove** » Fri Dec 27, 2013 7:01 pm

nevada wrote:Is this signal path Audio In > Reverb > Distortion > Filter > Audio Out?

sorry lol, it's: Audio in - distortion - reverb - distortion - filter - audio out. The pregain is before the reverb and also carries the modulation that's in the circuit and the distortion/fuzz, post-gain after the reverb with both of them combined it equals out to ranges from a dirty deep boost, to smooth overdrive, distortion and all the way up to unique modulating massive fuzz.

Sorry it took a bit to respond, I've been extremely busy for the holidays, family stuff you know

Dandolin · Post by **Dandolin** » Thu Feb 20, 2014 2:03 pm

Heavy Drone= :joy:

I think it would be cool to have expression control over mix--set up some really chaotic dronez and fade them in or rhythmically pan between "unaffected" and "Industrialectricuted!"

Also, Dual RM-1N/Rhythm Degrader would dominate, in addition to possibly swallowing your entire pedalboard. :evil:

intothegroove · Post by **intothegroove** » Thu Feb 20, 2014 9:50 pm

Dandolin wrote:Heavy Drone=

I think it would be cool to have expression control over mix--set up some really chaotic dronez and fade them in or rhythmically pan between "unaffected" and "Industrialectricuted!"

Also, Dual RM-1N/Rhythm Degrader would dominate, in addition to possibly swallowing your entire pedalboard.

Awesome man! Glad you're liking it, still going to mess around and try and get more out of the circuit but those are some great ideas to experiment with! :joy:
