Re: TGD Build! Ask yo motherfuckin' questions here!

Post by jellyfishfuzz »

Woohoo. This build is so freakin awesome. This pedal is crazy. It sounds like electric static rain droplets. And then with one little twist of the knobbie its hurricane weather. Its my first build and this was the perfect one. I had some problems with soldering the first one since its my first time soldering but dwarfcraft sent me a pcb and the components to do again for super cheap. Fucking great. THanks you guys. So much fun. Thanks Again.
Awesome Deals with:
Officer Bukowski; hbombgraphics; bongoben; Ronripper; Bob the robot; dangergirlstarship; foomanfat; sillyfabe; doomeow; insubordination; Justin; intothegroove; blooghost; strange tales; petee bee

."a place where......like minded individuals can...get together and....exchange...ideas...
and that place is called......BURNING MAAAAANNNN!!!"
Top
User avatar
hbombgraphics
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 8654
Joined: Tue Aug 17, 2010 2:39 pm
Location: Central NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by hbombgraphics »

what gauge hookup wire is everyone using?
Gunner Recall wrote:This thread is bad and everyone in it should feel bad.
Iommic Pope wrote:This thread is mediocre at best, but I encourage everyone posting in it to feel as awesome as possible.
https://soundcloud.com/hbombgraphics
Top
Officer Bukowski
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 3307
Joined: Wed Nov 17, 2010 9:13 pm

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by Officer Bukowski »

I like this stuff

http://www.mammothelectronics.com/4SBRD ... 00-400.htm
I make pedals. SHARK TANK
Top
User avatar
hbombgraphics
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 8654
Joined: Tue Aug 17, 2010 2:39 pm
Location: Central NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by hbombgraphics »

very cool, I ordered some 24
Gunner Recall wrote:This thread is bad and everyone in it should feel bad.
Iommic Pope wrote:This thread is mediocre at best, but I encourage everyone posting in it to feel as awesome as possible.
https://soundcloud.com/hbombgraphics
Top
User avatar
hbombgraphics
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 8654
Joined: Tue Aug 17, 2010 2:39 pm
Location: Central NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by hbombgraphics »

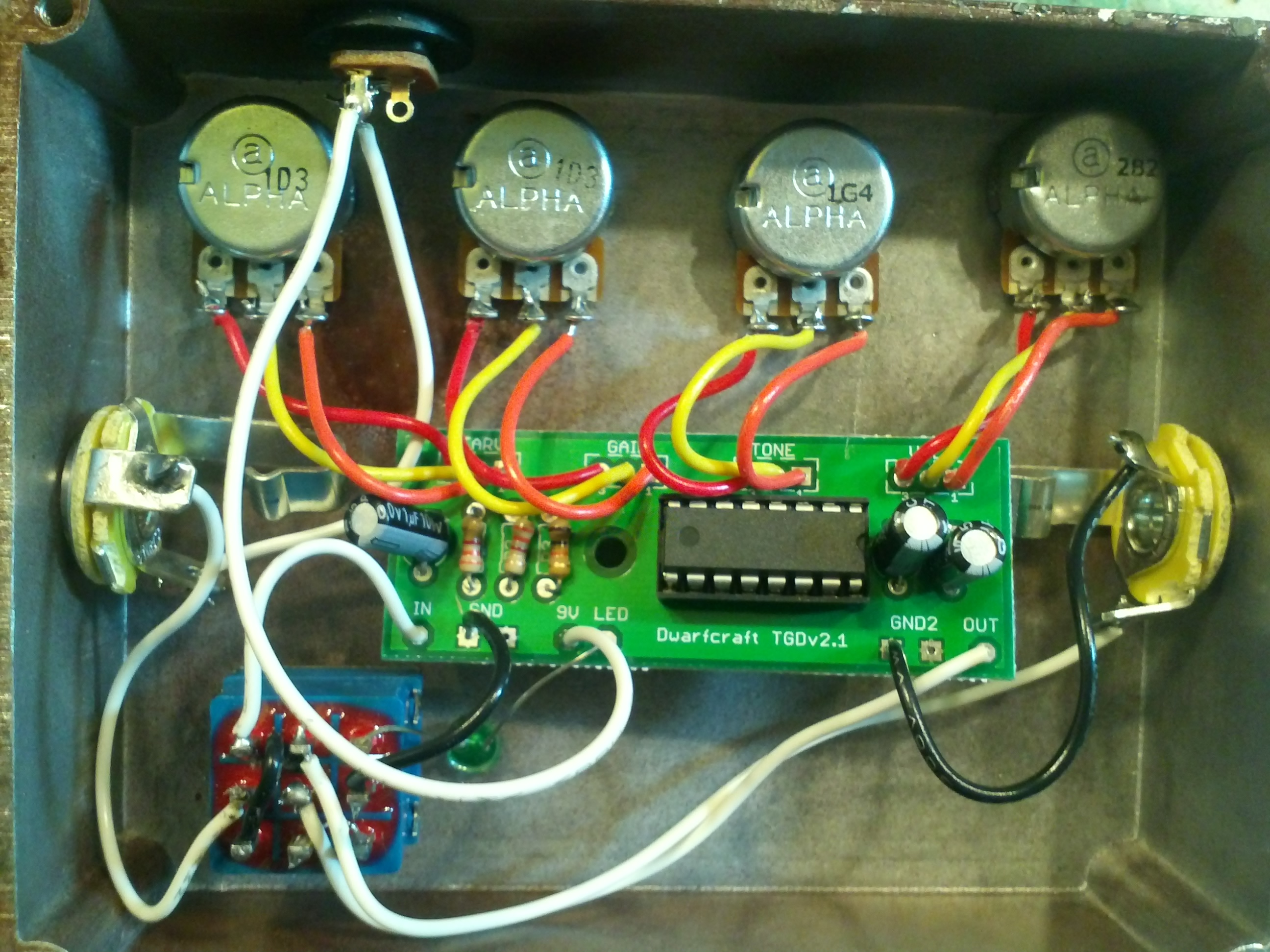

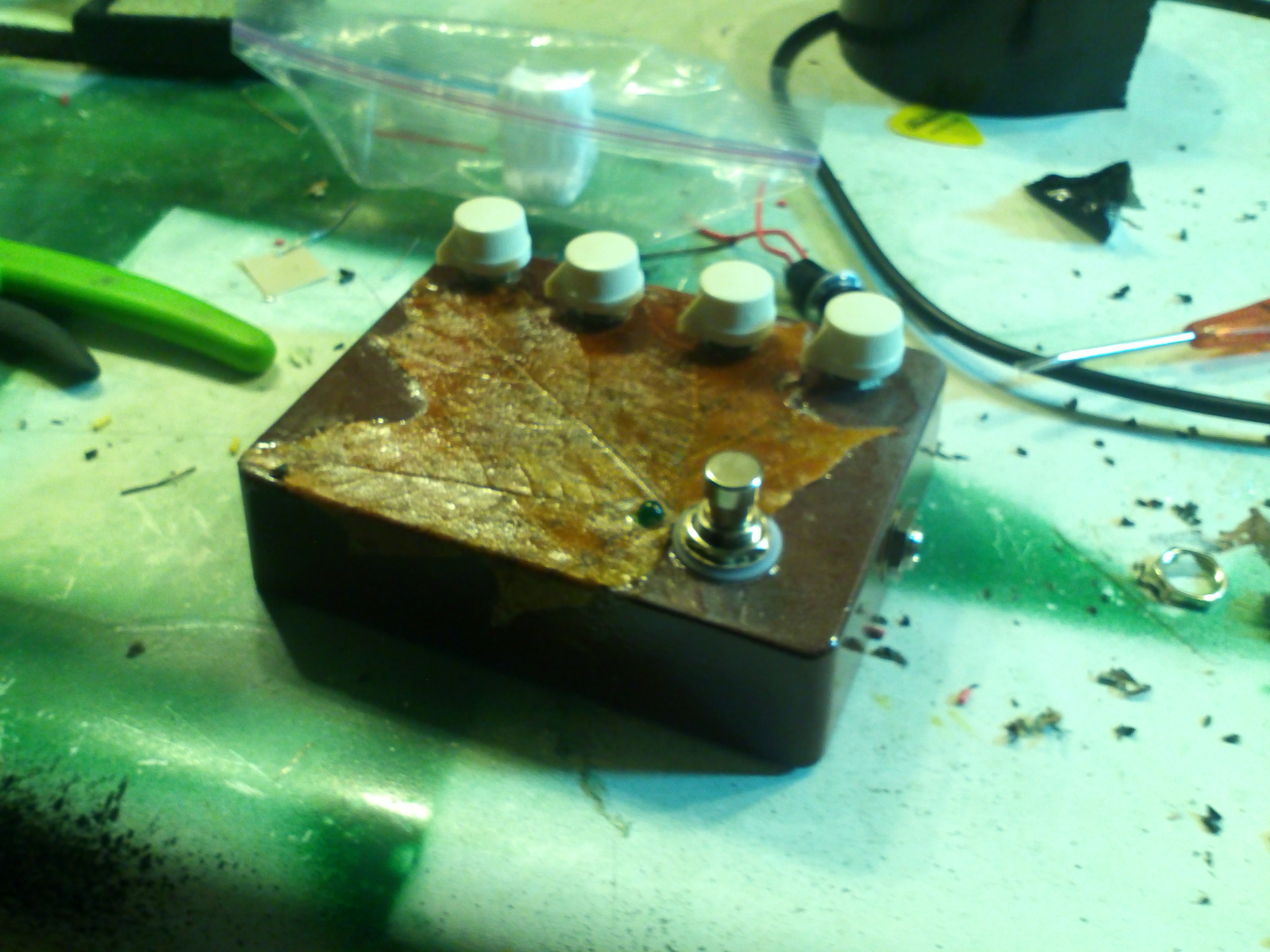

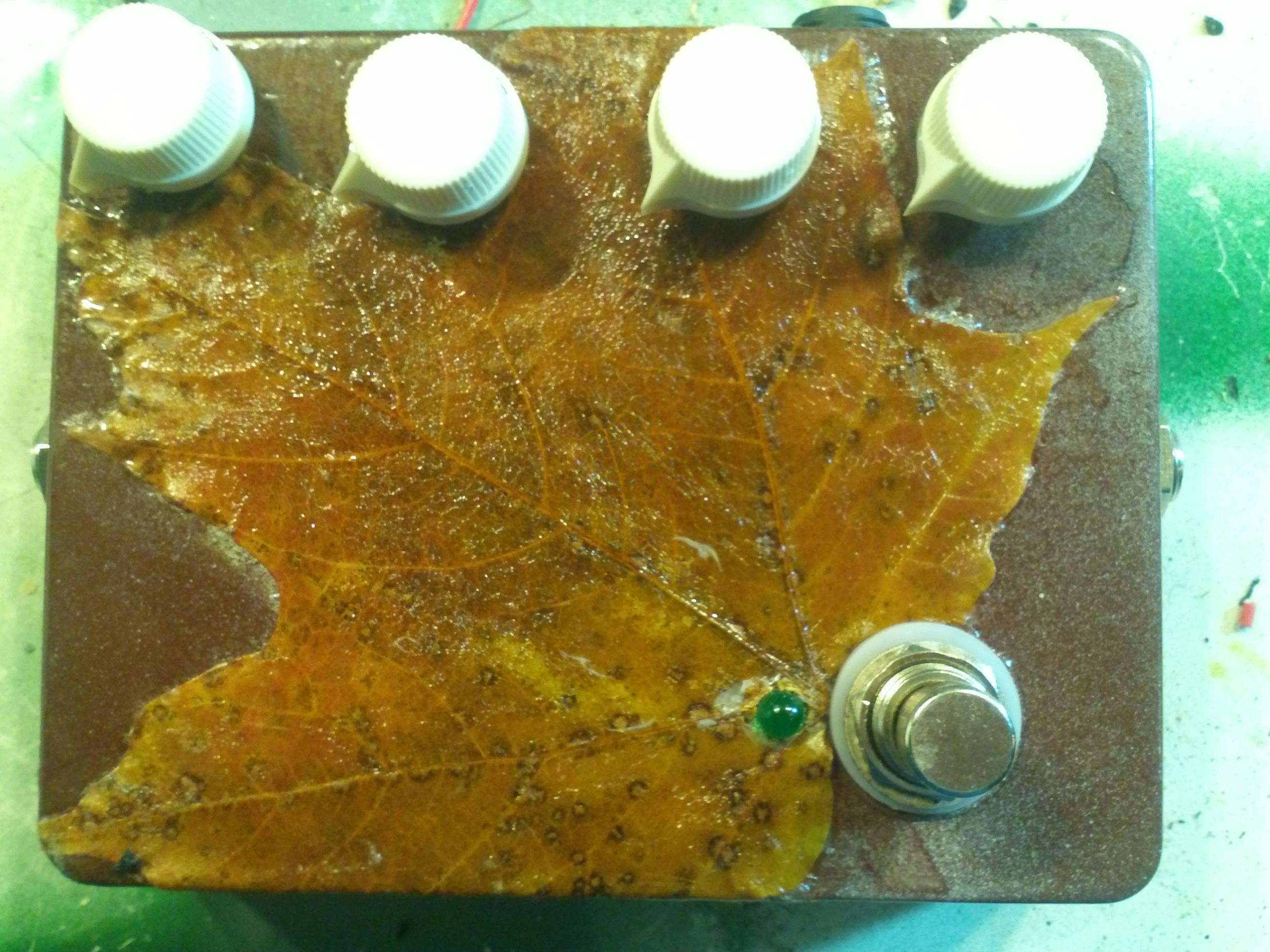

just finished this up
it works
I am not sure how noisy this thing should be and am also running it into a marshall mini stack so I think I have to try it with a big amp before I put the lid on tomorrow
if anyone sees anything I need to change let me know
although I won't get more talented overnight
Attachments
Gunner Recall wrote:This thread is bad and everyone in it should feel bad.
Iommic Pope wrote:This thread is mediocre at best, but I encourage everyone posting in it to feel as awesome as possible.
https://soundcloud.com/hbombgraphics
Top
User avatar
hbombgraphics
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 8654
Joined: Tue Aug 17, 2010 2:39 pm
Location: Central NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by hbombgraphics »

ok most of my noise went away when I put the bottom cover on, does that make sense?
Gunner Recall wrote:This thread is bad and everyone in it should feel bad.
Iommic Pope wrote:This thread is mediocre at best, but I encourage everyone posting in it to feel as awesome as possible.
https://soundcloud.com/hbombgraphics
Top
User avatar
Jwar
Cosmic of BILF
Cosmic of BILF
Posts: 18238
Joined: Thu Dec 02, 2010 7:18 pm
Location: The edge of existence

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by Jwar »

I believe the enclosure is the ground in this one. So maybe that's why? Dunno. Can't remember. It's a noisy fuckin pedal though! But in a good way. Try it with the oscillation off.
"I do not have the ability to think rationally 90% of the time and I also change my mind at the drop of a hat".

-JWAR :)
Top
User avatar
stripes
FAMOUS
FAMOUS
Posts: 1247
Joined: Tue Apr 03, 2012 11:52 am
Location: NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by stripes »

hey, i just got myself this build but left the instructions sheet at my apartment, which i won't be at for a few days.. days in which i plan on building this pedal. could someone take a picture of that instruction sheet for me? :D
Top
User avatar
hbombgraphics
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 8654
Joined: Tue Aug 17, 2010 2:39 pm
Location: Central NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by hbombgraphics »

stripes wrote:hey, i just got myself this build but left the instructions sheet at my apartment, which i won't be at for a few days.. days in which i plan on building this pedal. could someone take a picture of that instruction sheet for me? :D



yeah give me a few min I will post em here
Gunner Recall wrote:This thread is bad and everyone in it should feel bad.
Iommic Pope wrote:This thread is mediocre at best, but I encourage everyone posting in it to feel as awesome as possible.
https://soundcloud.com/hbombgraphics
Top
User avatar
stripes
FAMOUS
FAMOUS
Posts: 1247
Joined: Tue Apr 03, 2012 11:52 am
Location: NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by stripes »

thanks!! also is it better to install the switch, jacks and pots into the enclosure first and make all the connections to them while they're already in place or build the whole thing and then put it inside the enclosure?
Top
User avatar
hbombgraphics
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 8654
Joined: Tue Aug 17, 2010 2:39 pm
Location: Central NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by hbombgraphics »

install first and then make all the connections
Gunner Recall wrote:This thread is bad and everyone in it should feel bad.
Iommic Pope wrote:This thread is mediocre at best, but I encourage everyone posting in it to feel as awesome as possible.
https://soundcloud.com/hbombgraphics
Top
User avatar
hbombgraphics
IAMILFFAMOUS
IAMILFFAMOUS
Posts: 8654
Joined: Tue Aug 17, 2010 2:39 pm
Location: Central NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by hbombgraphics »

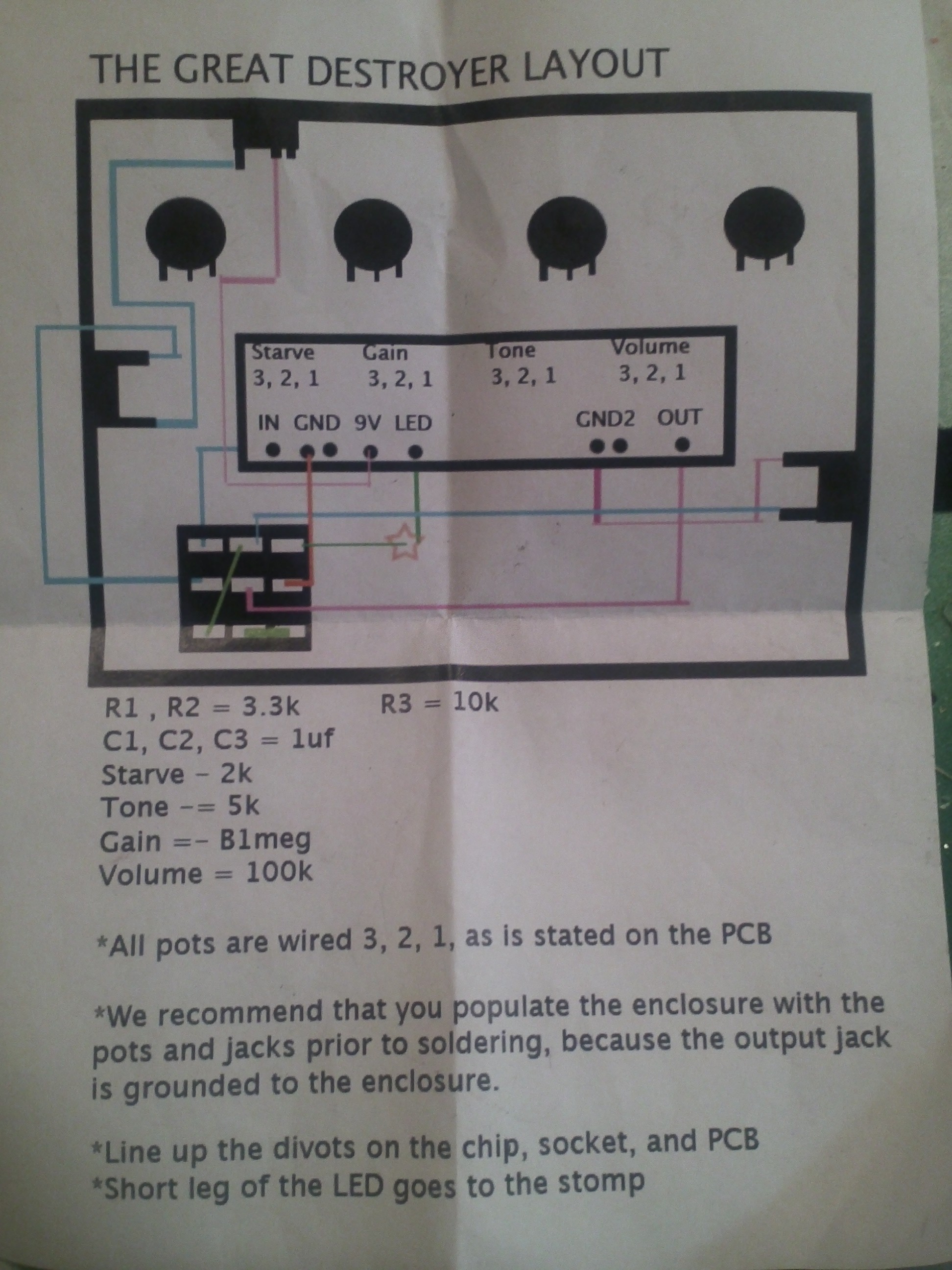

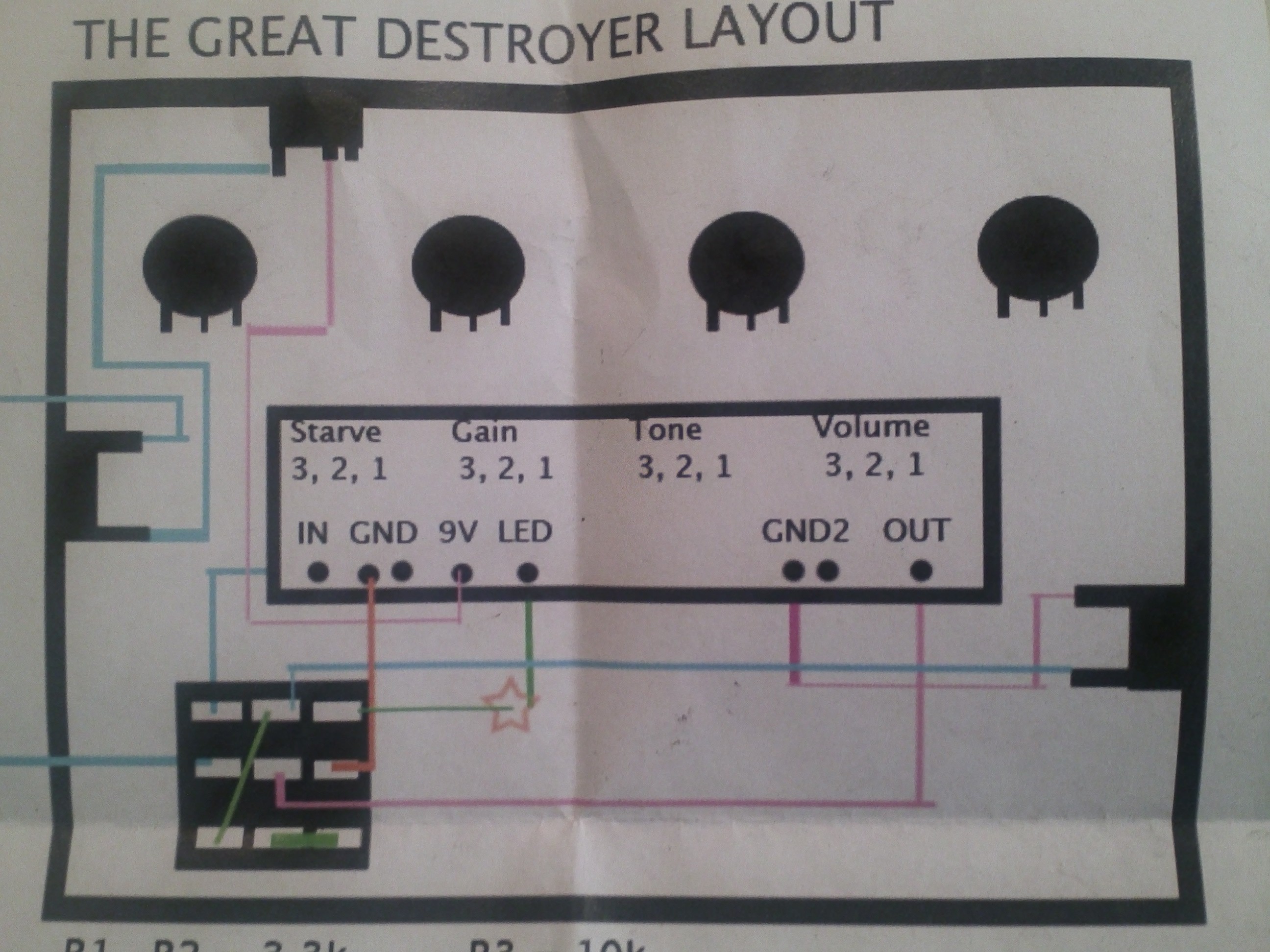

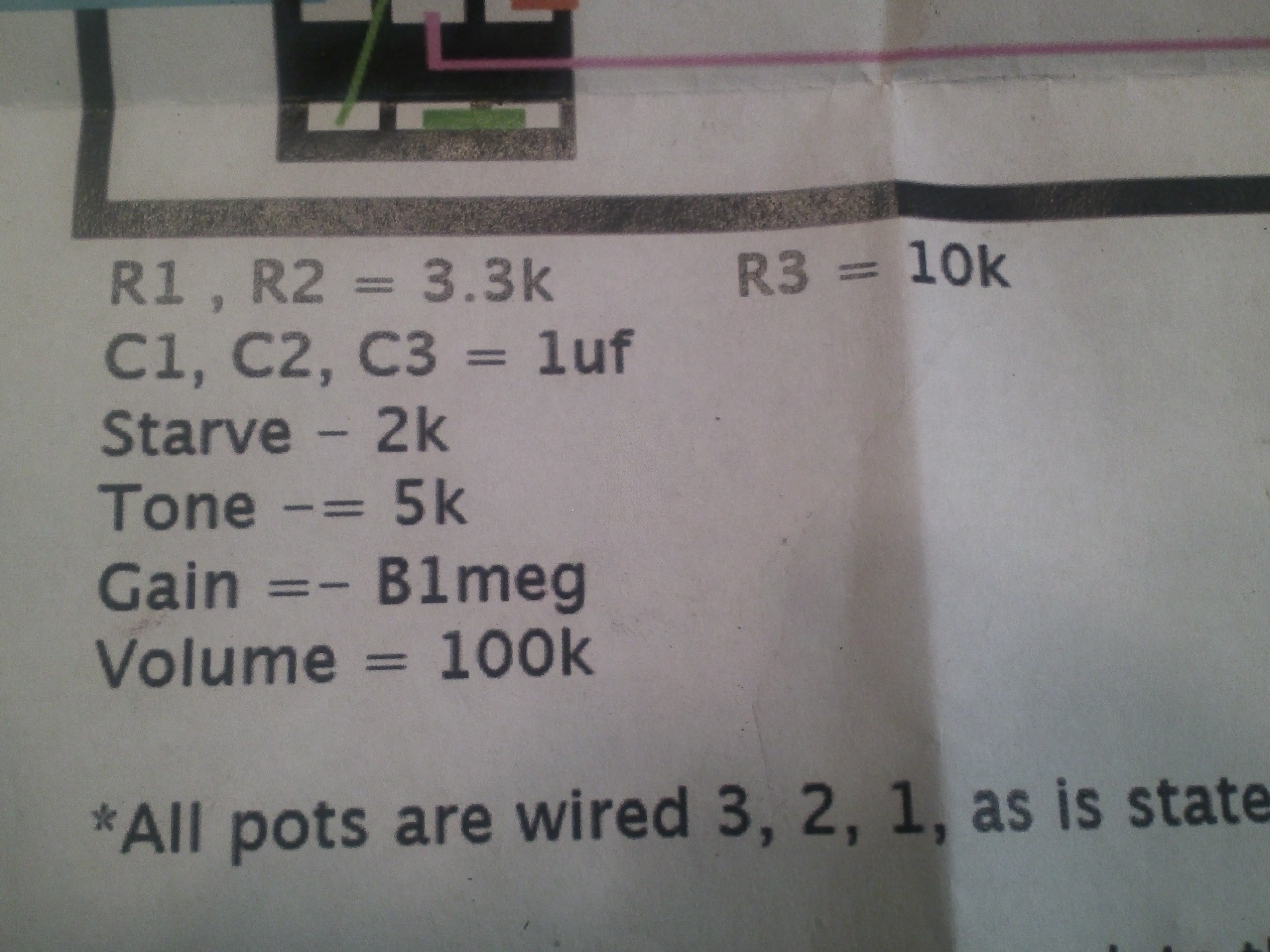

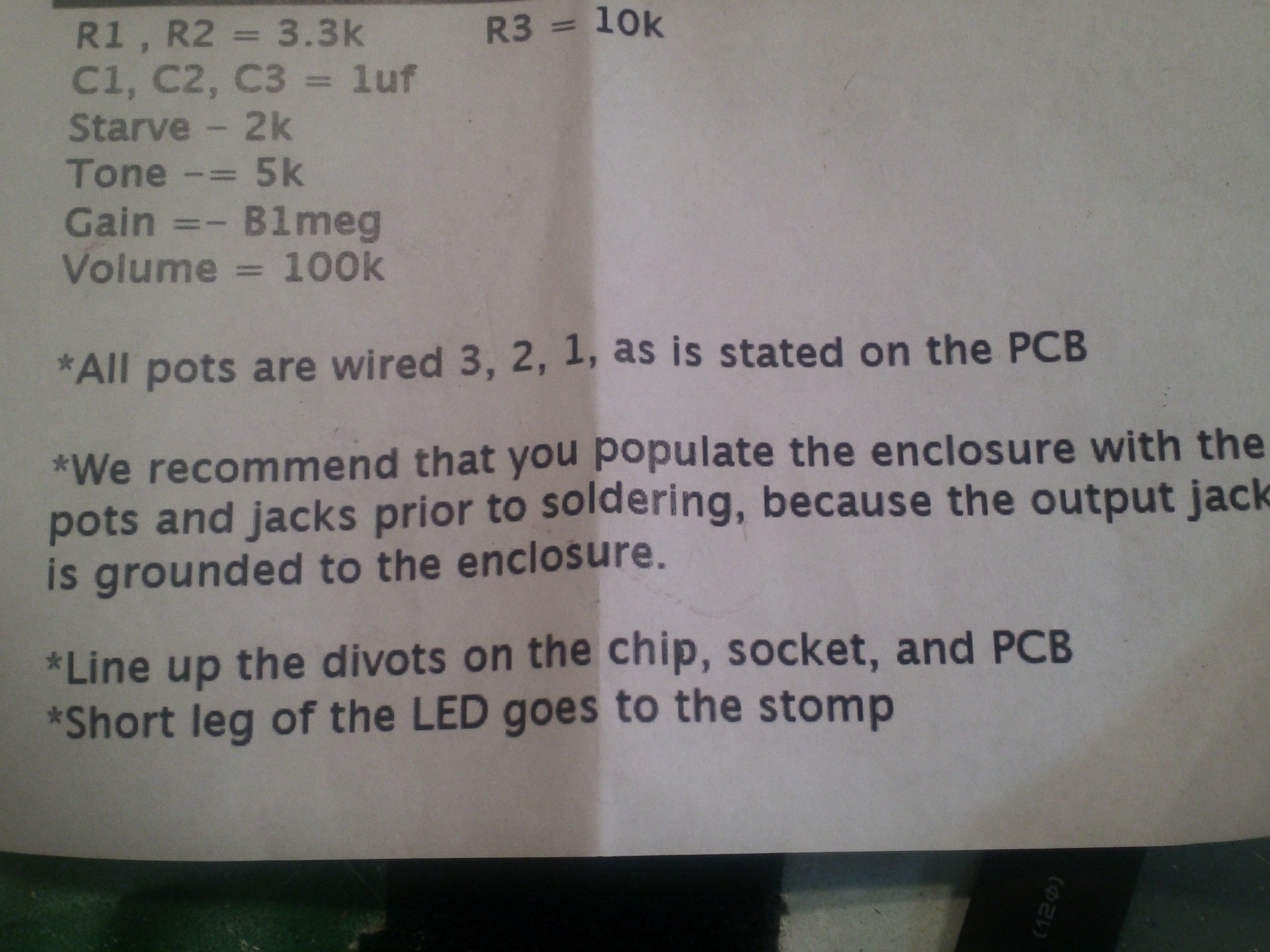

Pics YO!
Attachments
TGD 3.jpg
TGD 4.jpg
TDD 2.jpg
TGD 1.jpg
Gunner Recall wrote:This thread is bad and everyone in it should feel bad.
Iommic Pope wrote:This thread is mediocre at best, but I encourage everyone posting in it to feel as awesome as possible.
https://soundcloud.com/hbombgraphics
Top
User avatar
stripes
FAMOUS
FAMOUS
Posts: 1247
Joined: Tue Apr 03, 2012 11:52 am
Location: NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by stripes »

THANKYEW
Top
User avatar
stripes
FAMOUS
FAMOUS
Posts: 1247
Joined: Tue Apr 03, 2012 11:52 am
Location: NY

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by stripes »

was getting this pot in the kit a mistake? it's B2K but a pcb mount one...? confused
Top
User avatar
Jwar
Cosmic of BILF
Cosmic of BILF
Posts: 18238
Joined: Thu Dec 02, 2010 7:18 pm
Location: The edge of existence

Re: TGD Build! Ask yo motherfuckin' questions here!

Post by Jwar »

That's gotta be a mistake. You could still use it probably, but no that's wrong.
