I need someone to critique the logistics of a simple project

[DhanoSuzuki]

Okay, so I talked to guy today and we are a go for this project. Now I just need to order the components and enclosure, and bring it all in.

I need a little help though. How do I determine which pots I need to order for the Dano? They look a bit weird, and different from the usual ones that you see. Thanks in advance.

[Jero]

Look up a schematic for the tone machine and replace with those values...or measure the pots inside.

[pocketchange]

lets see, it's just three 50KB pots (aka 50K linear) for the danelectro french toast. If you'll be using knobs with a screw set you're probably best getting this type: http://www.taydaelectronics.com/50k-ohm ... -lugs.html

If you'll be using knobs that accept a knurled or spline shaft pot use this type: http://www.taydaelectronics.com/50k-ohm ... -lugs.html

[DhanoSuzuki]

Awesome, thanks a lot. You guys are great.

For the voltage starve mod, I am referring to this resource: http://tonereport.com/blogs/do-it-yours ... starvation.

I can make a little sense of those diagrams, but just so I am sure: for a voltage sag mod, do I just need to purchase a potentiometer with the right value to get the effect I want?

As the person who wrote that article seems to prefer 100k pots for that mod, I was just going to go for the same thing. Is there some other component that I am overlooking, or is the pot it?

Thanks again, this project is a fun learning experience, though I still have a long way to go.

[DhanoSuzuki]

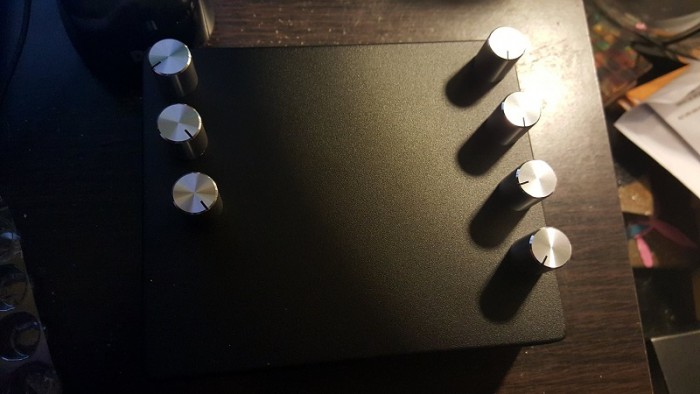

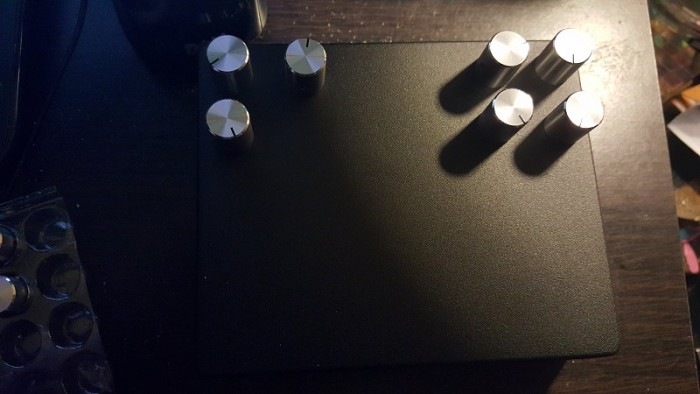

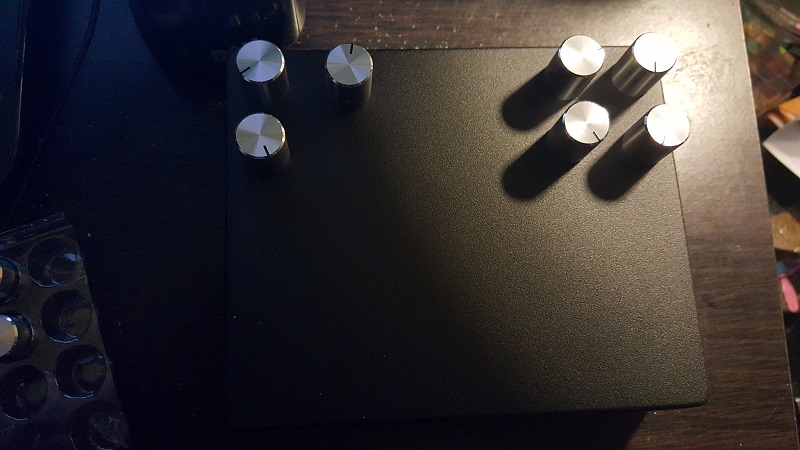

Alright guys, voting time. Which knob layout looks better?

[crochambeau]

You sticking foot switches in there too? I'd advise not committing a mock up without those (to allow clumsy feet a safe zone).

That said, I prefer lines over clusters - but that's just like, my opinion, man.

[DhanoSuzuki]

Yeah, two footswitches. If I go with the lines (which is what I'm leaning towards myself), I'm considering maybe putting a metal rail between the footswitch and the knobs on the right. Kind of like those cheap Aroma pedals



But vertical instead of horizontal.

But, I feel like there will be enough room to not have to worry about it. Though, no way of knowing for sure until the footswitches arrive.
