AB Box with a twist [not working...]

[eatyourguitar]

I found a mistake in my drawing. I performed a ninja edit. look again at the pic I posted which is now corrected.

[eatyourguitar]

the only thing I'm not sure of is how you link the last momentary switch to the rest.

those are net names. so in theory, anything with the same name is connected by a conductor. you can call them wires.

[multi_s]

[quote="eatyourguitar"]


in this drawing it is impossible to mute b.

but it is possible to do it with dpdt.

im goping to the gym but i will post it in a few hours if no one figures it out.

[multi_s]

hint: you must use all lugs of both momentaries.

[morange]

I don't see how it's impossible to mute B. Eatyourguitar, nice; I didn't consider going parallel with the third switch.

[Glenouille]

In B always goes to Out B no matter what the position of the first momentary footswitch is in the drawing.

[eatyourguitar]

in this drawing it is impossible to mute b

look at it again. your usually a lot smarter than me. you must be having an off day. this schematic is working.

[multi_s]

oh ya my bad. it is ok i think. im not trying to be smart.

the3rd momentary in parallel is the key though for sure.

you can do it another way too, i will scan it later.

[Glenouille]

Well I'll have to try and wire it to figure out how it works I guess. The parallel thing is new to me.

[eatyourguitar]

In B always goes to Out B no matter what the position of the first momentary footswitch is in the drawing.

I don't know how you came to that conclusion. my design is working and peer reviewed

[Glenouille]

It's not going to be the first time I get it wrong and it won't be the last either... It took me a million years but I get the left side and yes of course it works! I'll have to see how I wire the parallel one and I'm there I guess. Thanks a lot!

[multi_s]

my design is working and peer reviewed

sig worthy.haha.

but ya his design is fine.

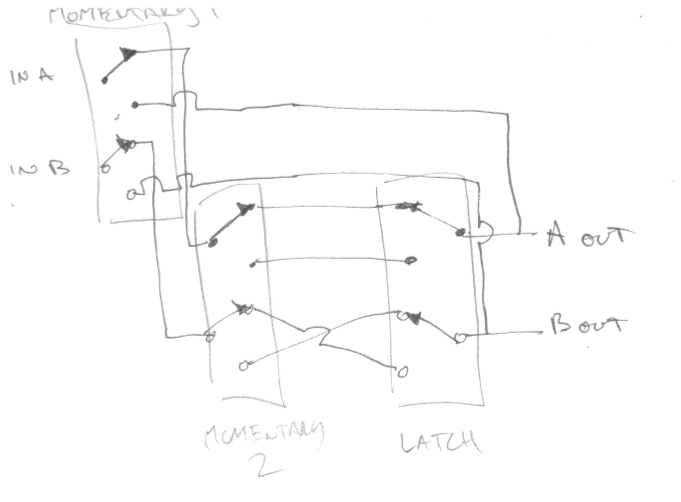

here is basically the same thing drawn more schematicall so maybe it will be easier for you to 'see' how it works.

momentary 1 is the a->a, b->b momentary.

[Glenouille]

Thank you all! I'll do the mod this WE and will get back in touch if I encounter problems, though I think it'll be straightforward.
