BYOC Octave Divider Odyssey

[Boxbie]

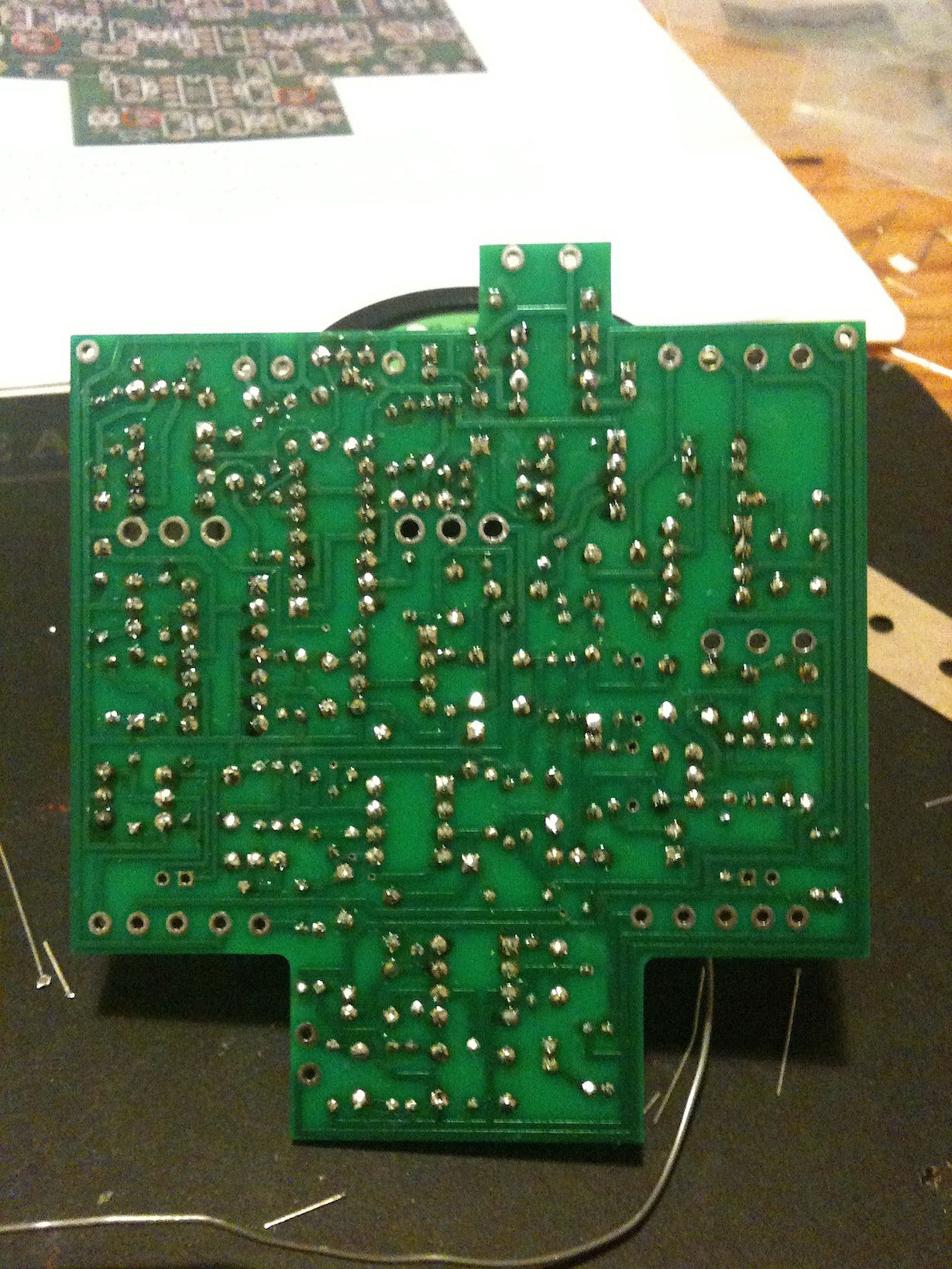

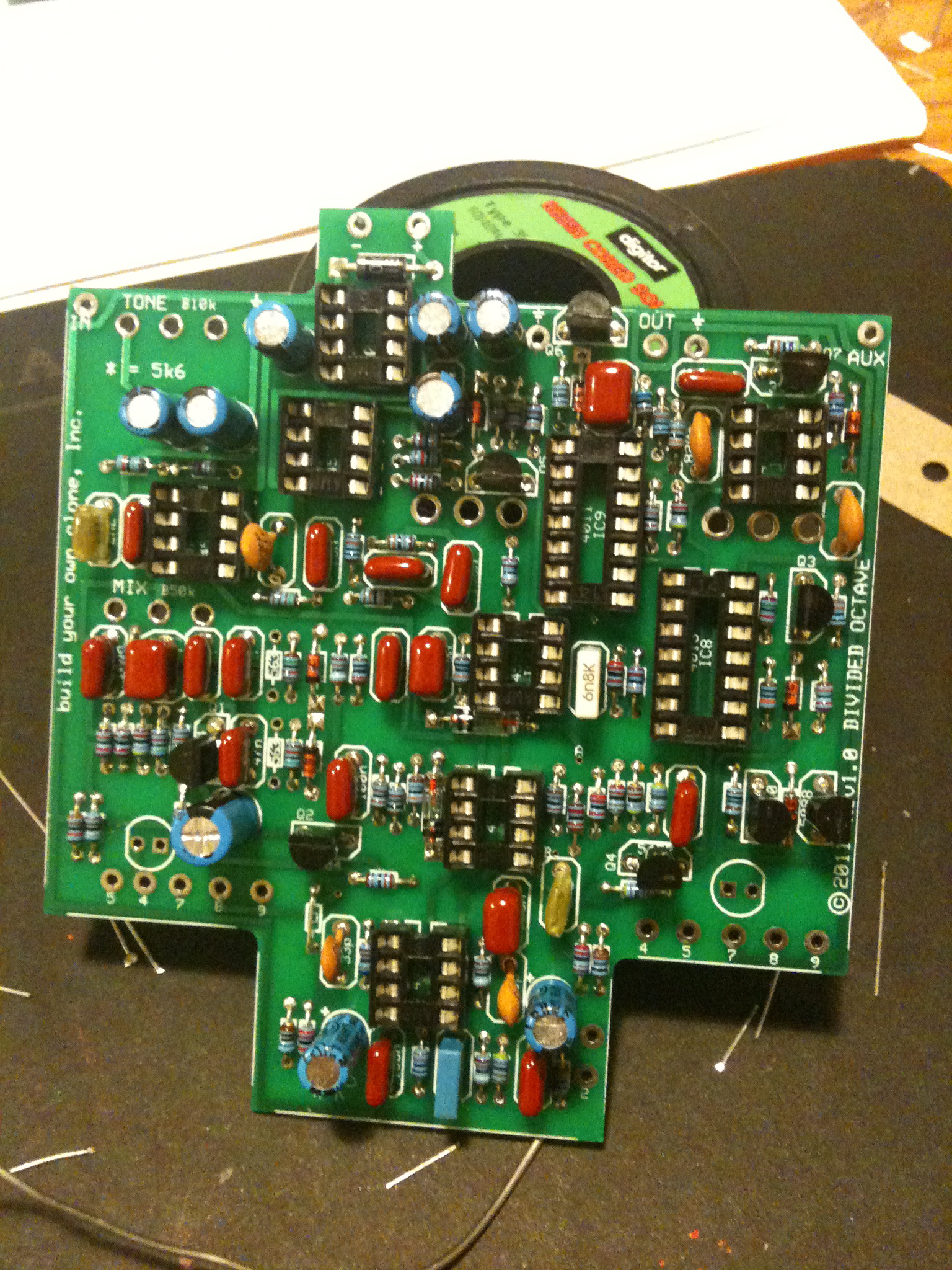

Then came diodez (silicone and germanium), capacitors in 3 flavours, electrolytics, transistors and then IC sockets.

Not the neatest soldering in the world, buy hey, it was tight.

I might point out this took all day.

[Boxbie]

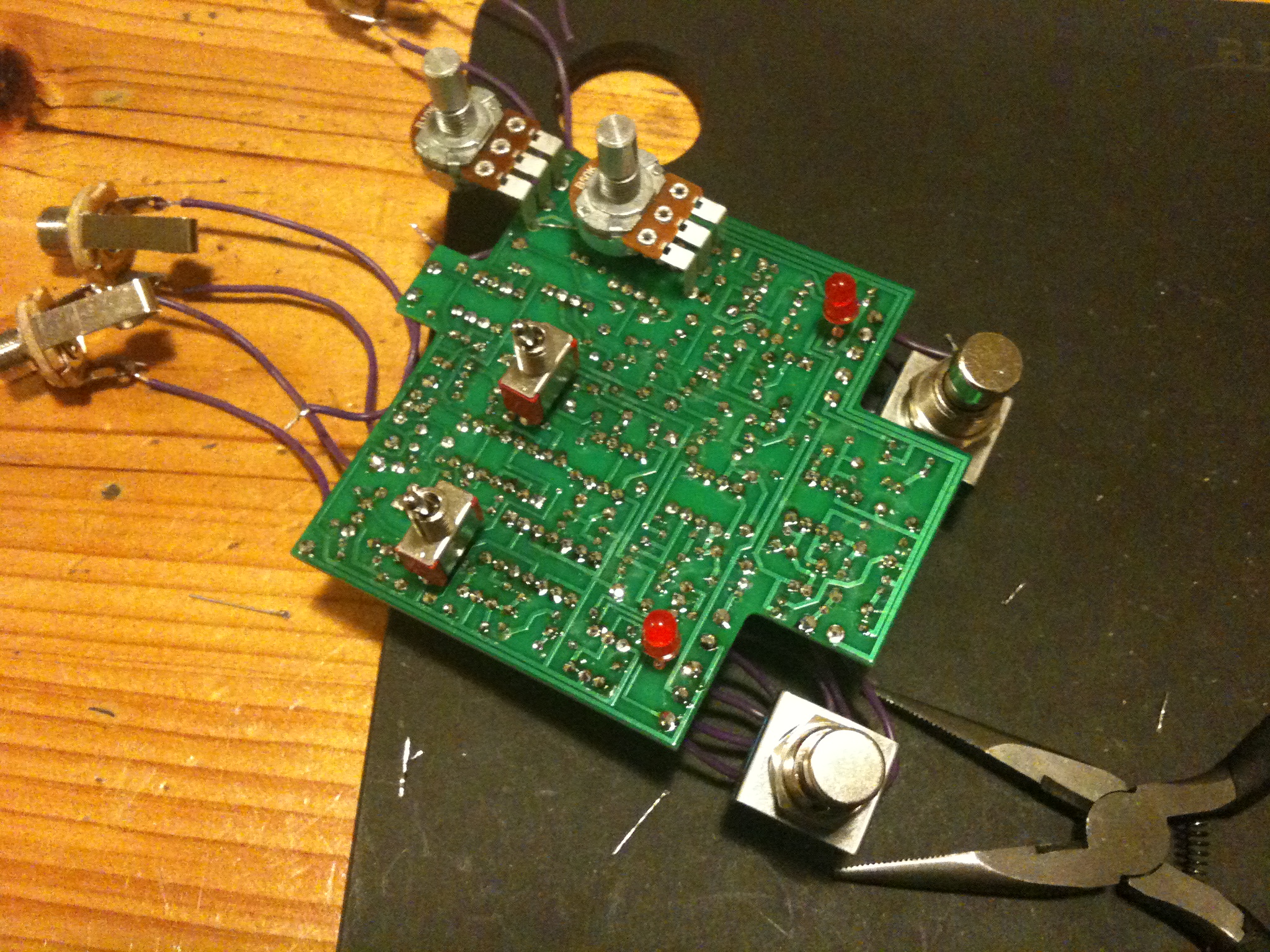

I then added the pots leds and switches as instructed. Soldered it together. Sweet! Everything is going to plan, starting to rush a litte, fatigue is setting in.

Disaster! in my rush I put the pots the wrong way around! Arg! You DIY'rs might know how tricky it is to remove PCB mounted things with more than one leg.

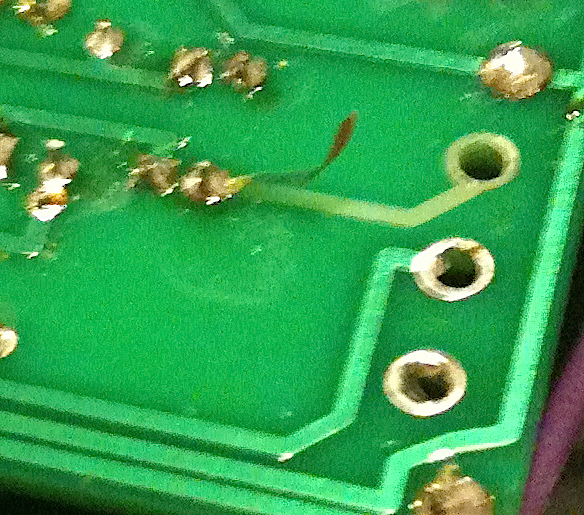

A goldmines worth of solder wick later I remove the first pot, and then the second and blam!!! More disaster! As i pulled out the second pot, it ripped up the trace!!
Nooo!!


[smallsnd/bigsnd]

not the worst thing in the world. just solder in the pot with the two holes that are still good, then use one of your clipped leads or a short wire and connect that point directly to the pot leg.

[Boxbie]

not the worst thing in the world. just solder in the pot with the two holes that are still good, then use one of your clipped leads or a short wire and connect that point directly to the pot leg.

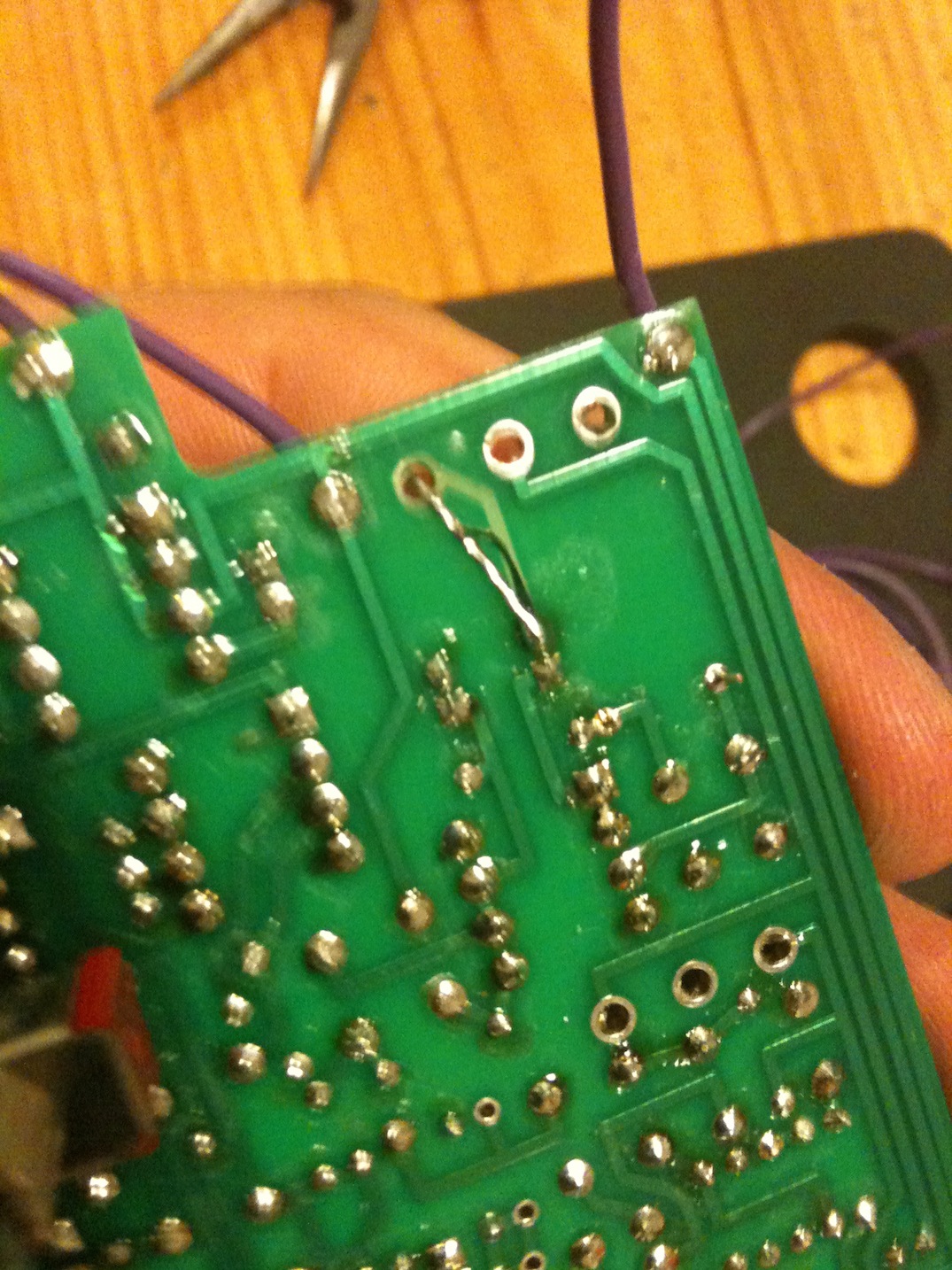

Thats what I ended up doing:

I then re soldered the pots, and installed it into the box. Time to try it out!!

[Boxbie]

Plugged in, lLights went on but no sound!!!!
I wasn't that surprised, just resigned to a heap of fuckery. I took it back to my desk to search for problems.

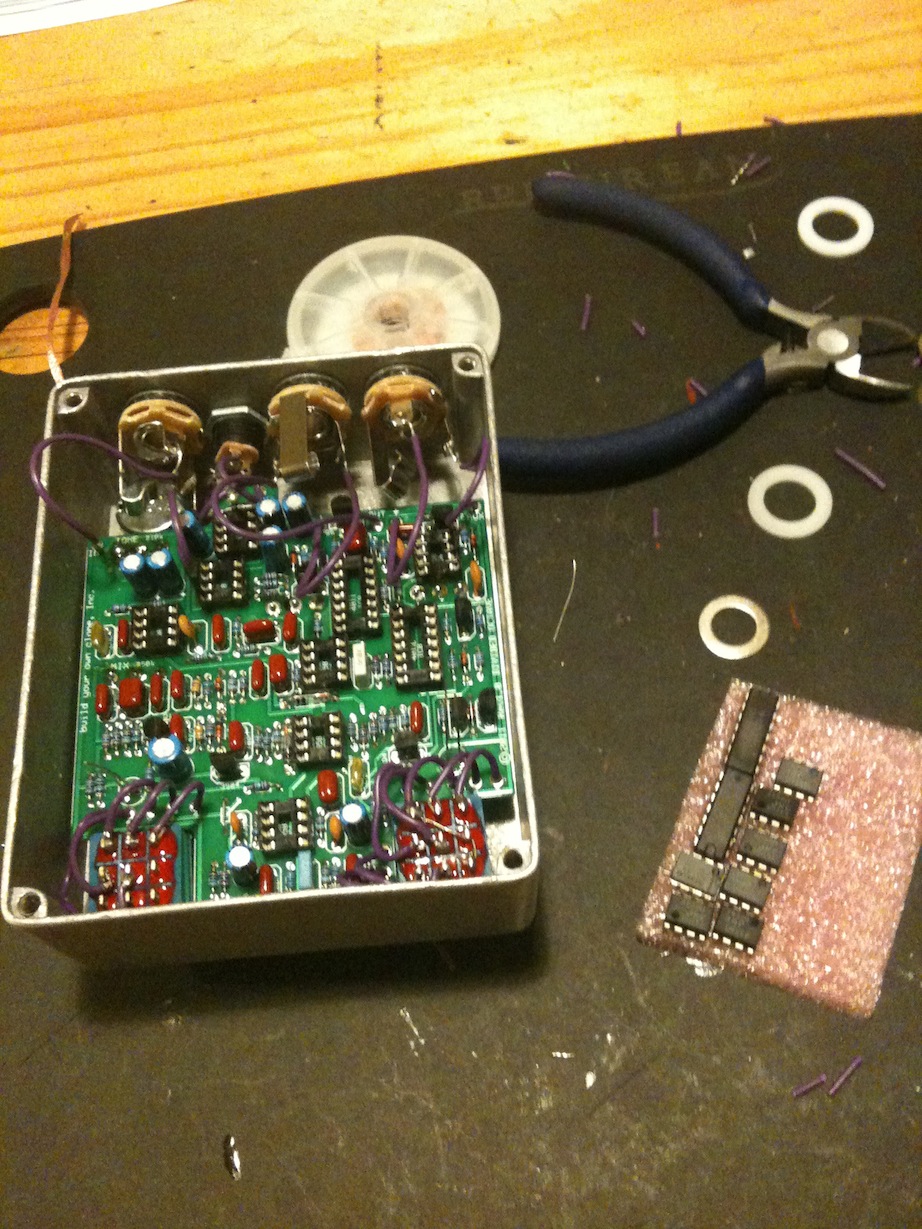

And I found them. Can you spot the problem ?

I plugged the ic's into the sockets, ran back to the amp and plugged it in. And it worked!

What a relief!

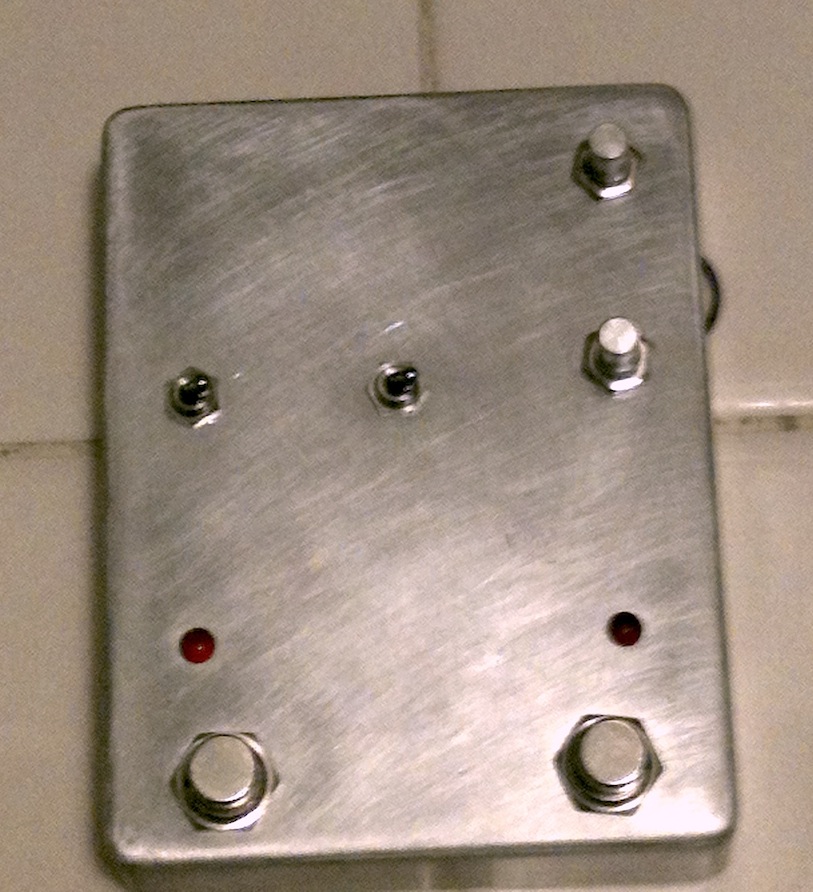

So now it's finishing time. I found a place that sells acid. To be continued...
