Hello all, not really sure if this is the right area to post this, but need advice from anyone with amp building experience. I'm trying to understand how tube amps work so I can potentially mod a fender of mine, but the handbook I'm reading keeps referring to "power rails", which are confusing me because:
a) I conceptually really don't understand what they do (but get the gist that they transfer DC voltage back to power the tube

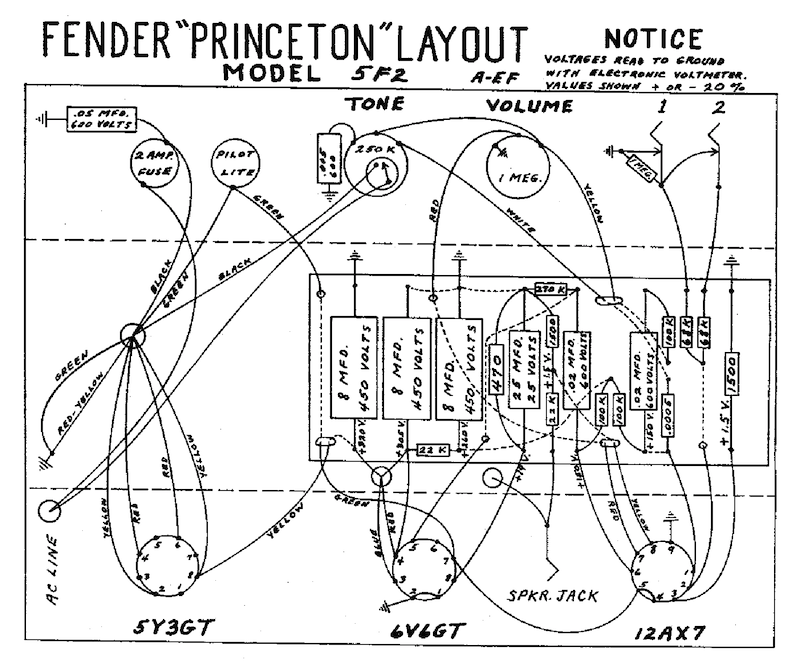

b) I don't understand what object in the Fender Princeton schematic the handbook provides is supposed to represent the "power rail(s)". I've included the schematic below. Apparently, the plate (pin 1) of the first triode of the preamp tube is supposed to run the signal through the 100k resistor, said resistor being connected to the "power rail" at some point. The problem is that I have no idea what the schematic is using to represent this "power rail" that the 100k resistor is wired to, nor do I really understand what those "rails" are connected to that is powering them (the transformer?).
Any help from anyone experienced with this kind of stuff will be greatly appreciated. I'm decent when it comes to understanding a system conceptually, but if I can't visualize a component of the system then there's no hope for fully understanding the whole.
Help identifying "power rails" in amp layout
